Linde Electric Forklift Truck Wheel

Our polyurethane solid wheels for forklift trucks include load bearing wheels, driving wheels, balance auxiliary wheels, press on wheels, and other wheel types. This page details the polyurethane wheels we produce for Linde electric forklift trucks.

Driving wheels

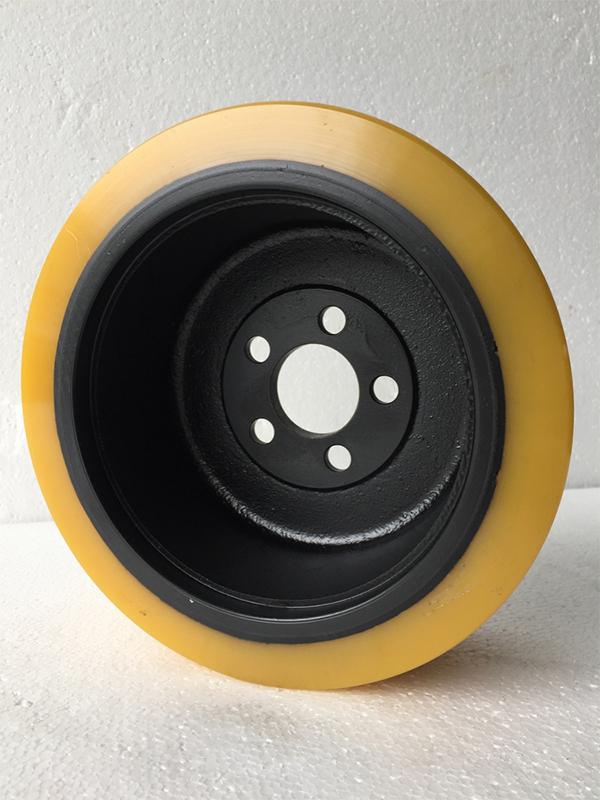

  • Dia.230 x 90(reverse side)

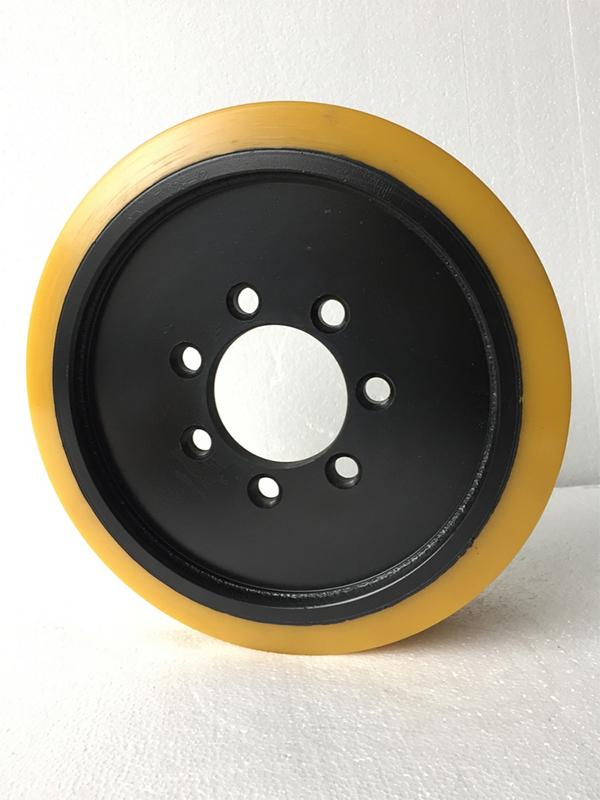

  • Dia.230 x 90(obverse side)
  • Dia.254 x 102(reverse side)
  • Dia.254 x 102(obverse side)

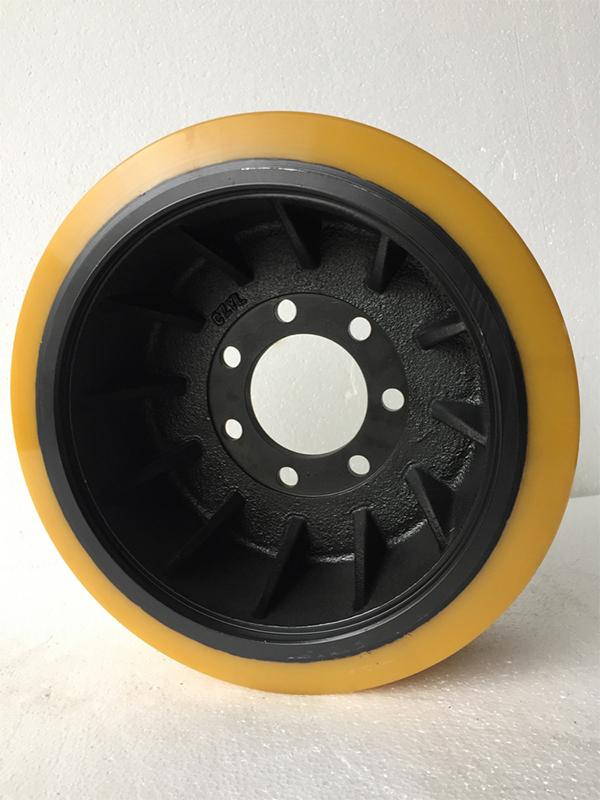

  • Dia.330 x 135(reverse side)
  • Dia.330 x 135(obverse side)

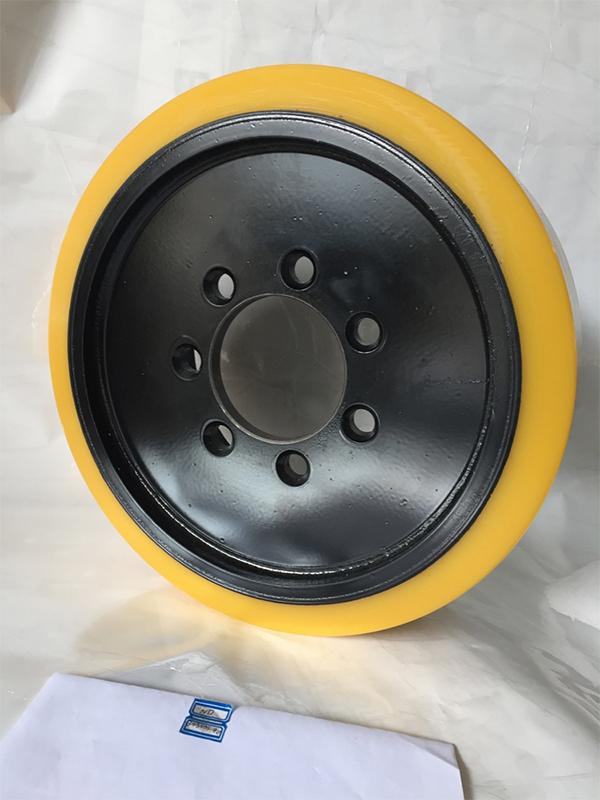

  • Dia.343 x 135-90(reverse side)
  • Dia.343 x 135-90(obverse side)

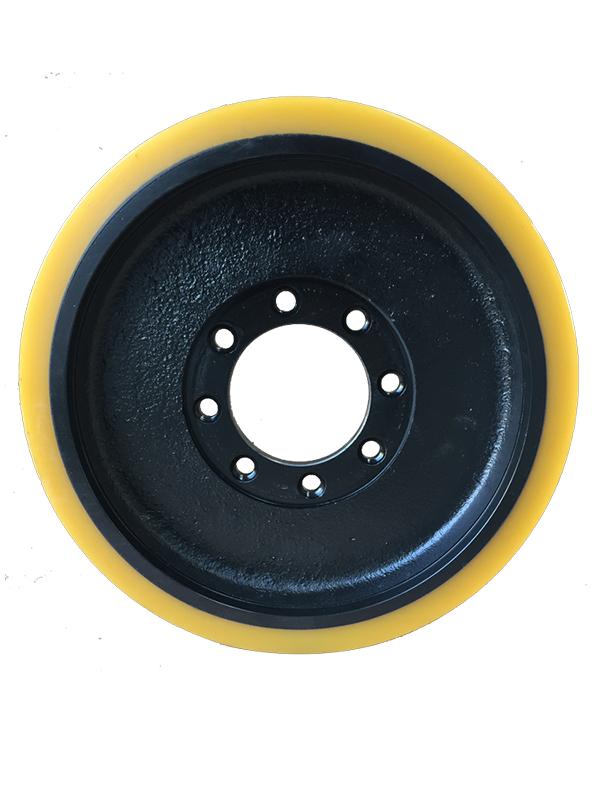

  • Dia.40 x 160-8holes(obverse side)

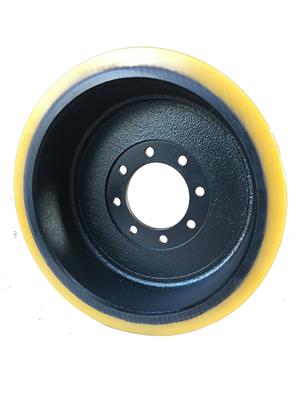

  • Dia.400 x 160-8 holes (reverse side)

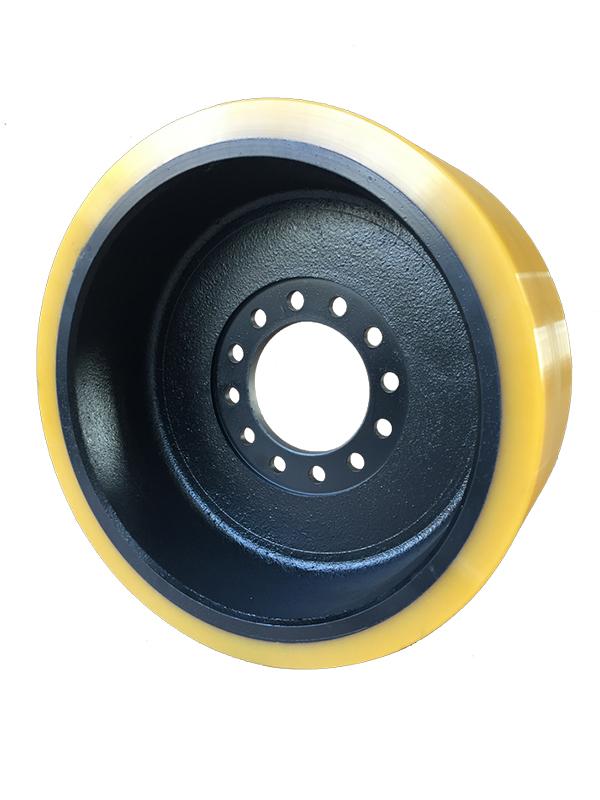

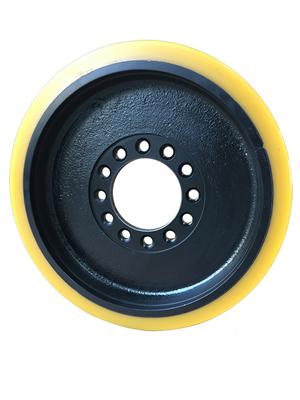

  • Dia.400 x 160-12 holes (obverse side)
  • Dia. 400 x 160 -12 holes 2(reverse side)
Load bearing wheels

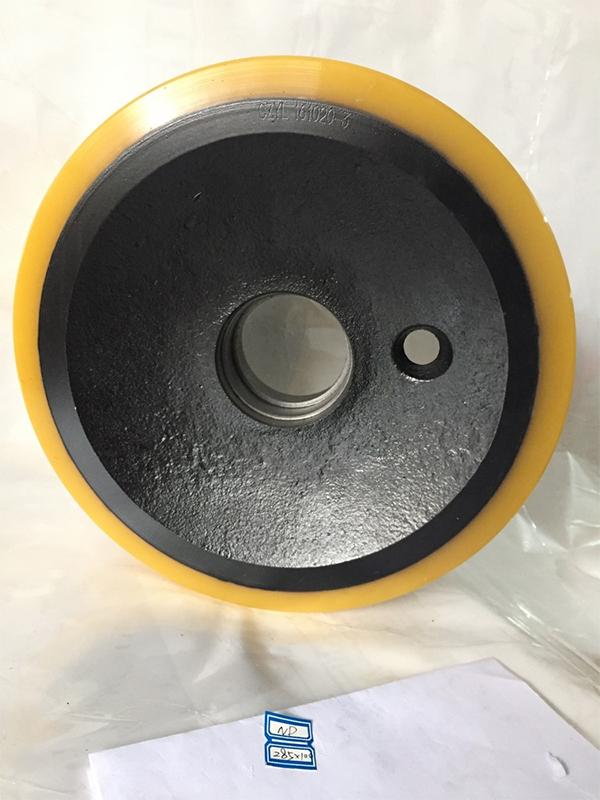

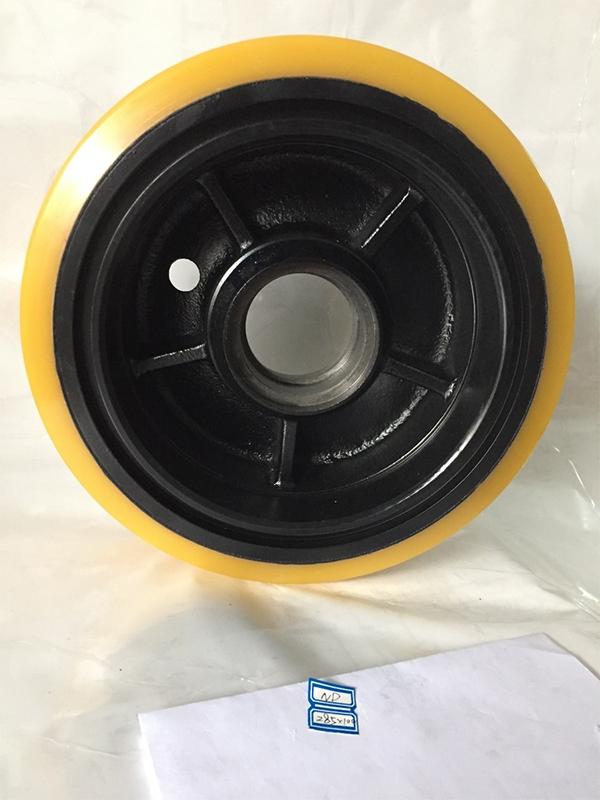

  • Dia.285 x 100(reverse side)
  • Dia.285 x 100(obverse side)
  • Dia.85 x 60

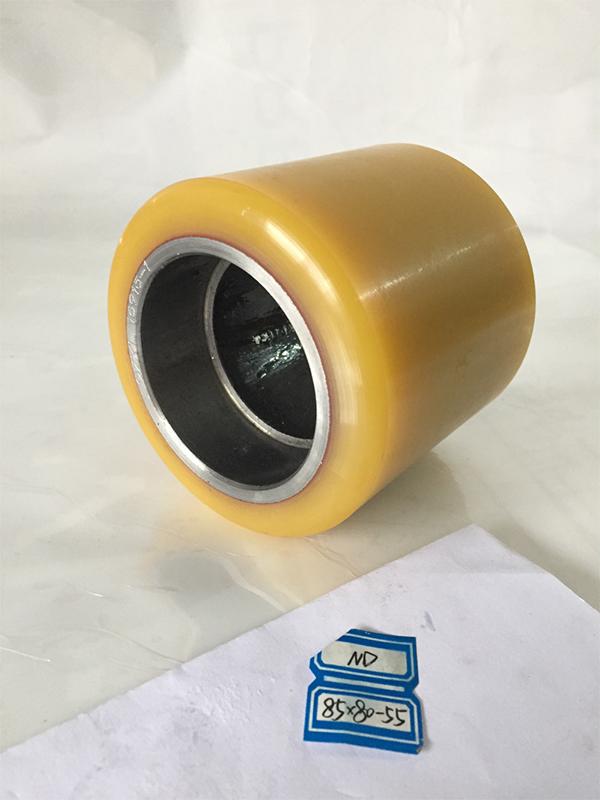

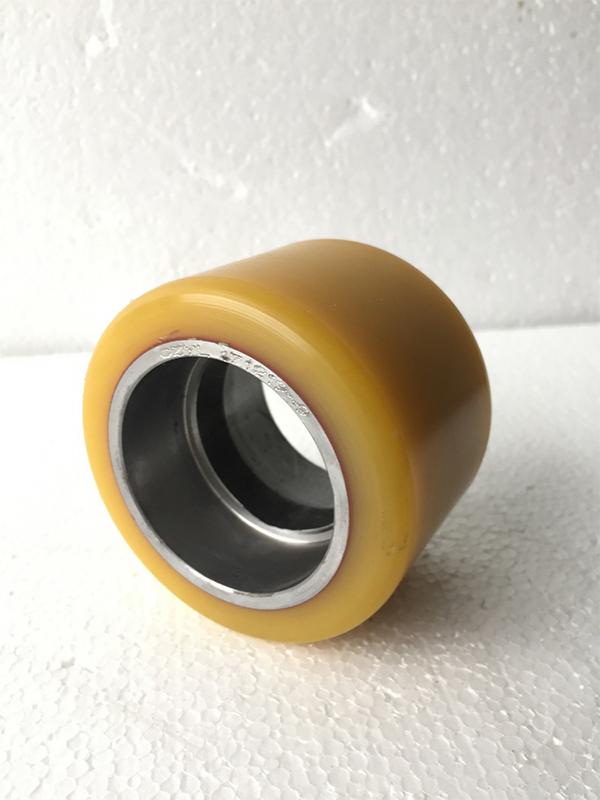

  • Dia.85 x 80
Auxiliary wheels

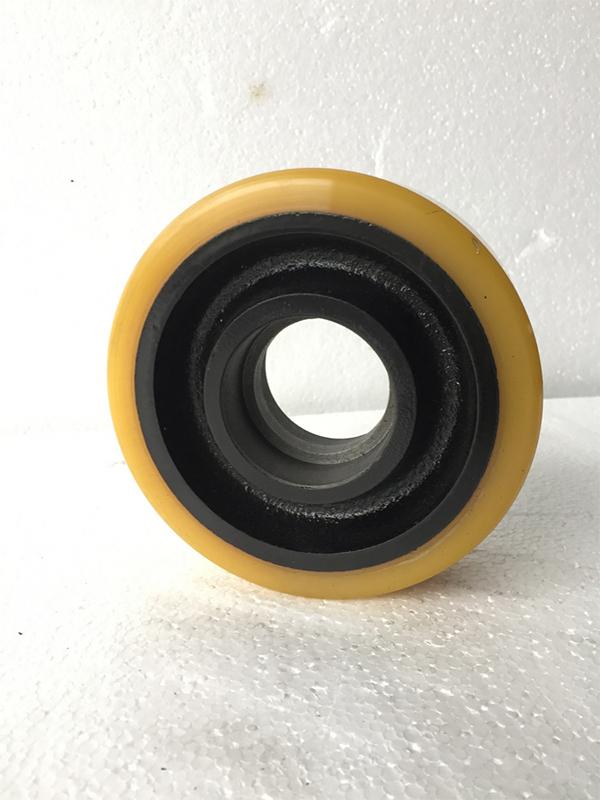

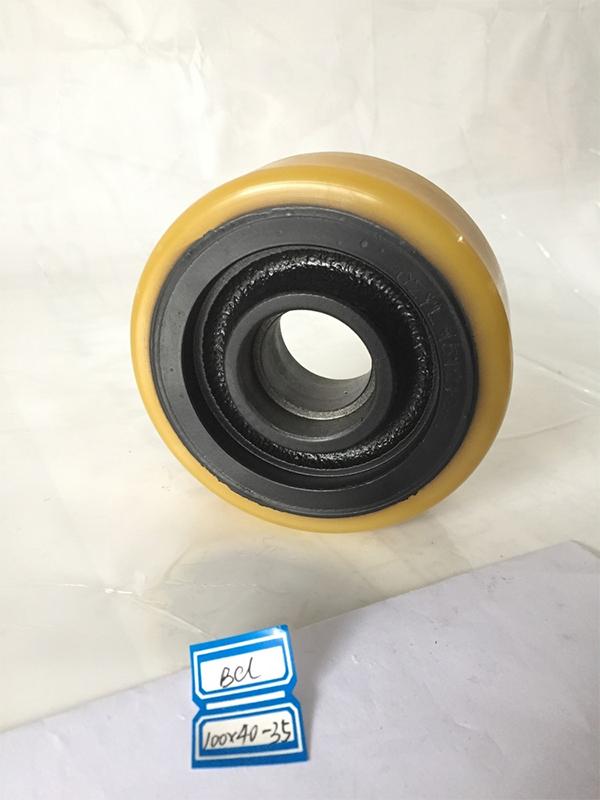

  • Dia.100 x 40

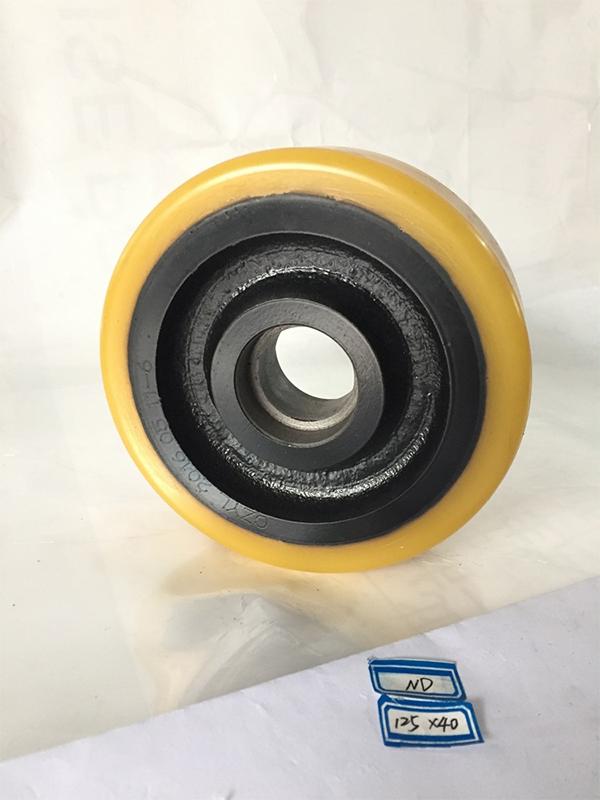

  • Dia.125 x 40

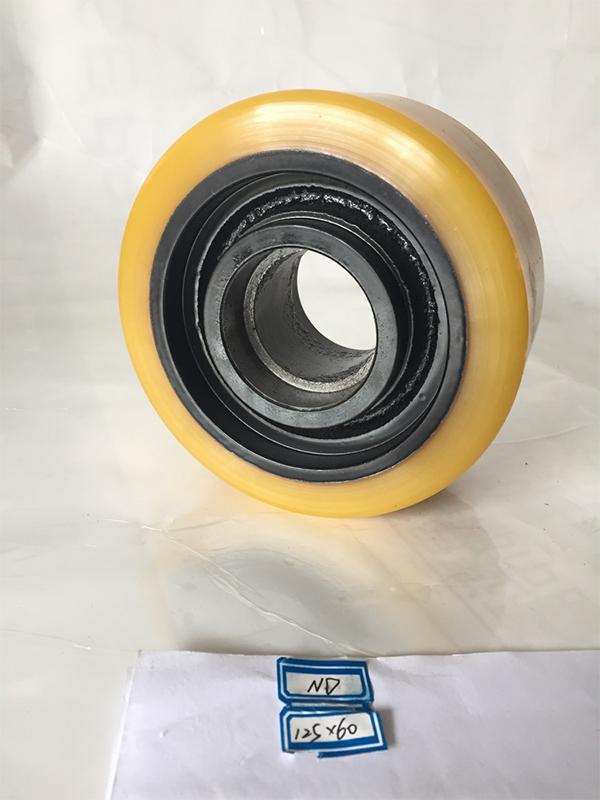

  • Dia.125 x 60
  • Dia.140 x 50

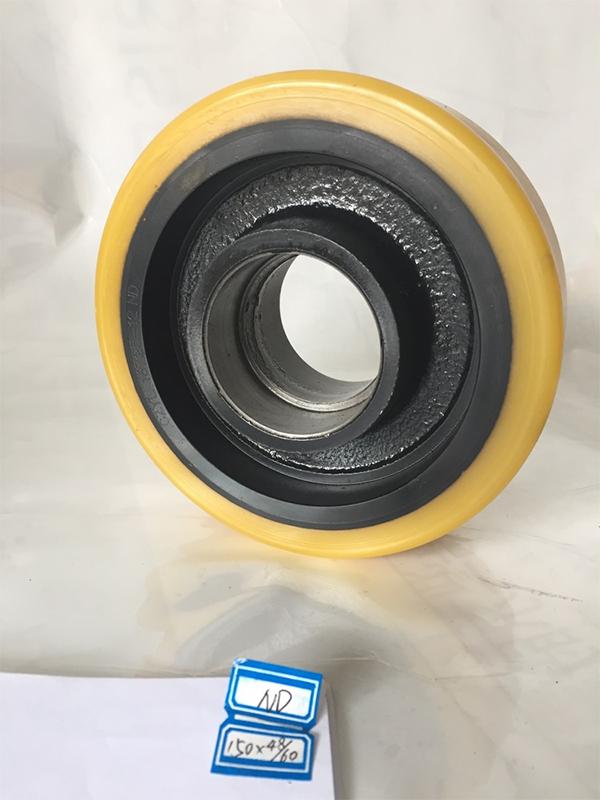

  • Dia.150 x 48-60
Size select:
Name of product D (Diameter, mm) H (Height, mm) d1 (Hole diameter, mm) d2 (Depth, mm) Load-bearing (Kg) Hole count
Driving wheel 400 160 110 8holes
Driving wheel 400 160 110 12 holes
Driving wheel 343 140 80 7 holes
Driving wheel 343 136 80 7 holes
Driving wheel 343 136 90 7 holes
Driving wheel 330 136 80 2350 7 holes
Driving wheel 330 136 90 2350 7 holes
Load bearing wheel 285 100 68 17 1820
Driving wheel 254 102 80 1400 5 holes
Driving wheel 230 90 45 1200 5 holes
Driving wheel 230 90 45 1200 4 holes
Auxiliary wheel 150 48/60 55 23 650
Auxiliary wheel 140 50 55 20.5 550
Auxiliary wheel 125 60 47 14 600
Auxiliary wheel 125 40 35 11 500
Auxiliary wheel 100 40 35 11 500
Load bearing wheel 85 80 55 23 500
Load bearing wheel 85 60 55 23 450
Load bearing wheel 80 55 47 20 450

These polyurethane tyred wheels can be applied in the vehicles as follows:
Linde Pallet Truck: T33R, T16L, M25, M25 Scale, MT15, T16, T18, T20, T30, M 10X, T14S, T20R
Linde Pallet Stackers: L12R, L16R, L12AP, L14AP, L16AP, L20AP, L10AS, L12S, D12, D14, D12HP, D12S, L10B, and V08
Linde very narrow aisle trucks: K example, A example.
Linde reach trucks: R25F, R20F, R10-R25, R10B, R12B, R14B, R16B, R14G, R16G, R20G, R14X, R16X, R17X .
Linde order pickers: V10, V24V, V48V, N20L, N20Li, N20, N20HP, N20HP ION, N24HP, V08, N20 VI
Linde logistic trains: FT16C, FT20C, FT08C, FT10C, FT16C, FT20C
Linde Pallet Truck: T33R, T16L, M25, M25 Scale, MT15, T16, T18, T20, T30, M 10X, T14S, T20R
Linde Pallet Stackers: L12R, L16R, L12AP, L14AP, L16AP, L20AP, L10AS, L12S, D12, D14, D12HP, D12S, L10B, V08
Linde very narrow aisle trucks: K exmple, A example
Linde reach trucks: R25F, R20F, R10-R25, R10B,R12B,R14B,R16B, R14G,R16G,R20G,R14X,R16X,R17X
Linde order pickers: V10, V24V, V48V, N20L, N20Li, N20, N20HP, N20HP ION, N24HP, V08, N20 VI
Linde logistic trains: FT16C, FT20C, FT08C, FT10C, FT16C, FT20C

The polyurethane wheel treads and cat iron wheel centers used in the industrial polyurethane tire wheel are manufactured here at Yulin, so that we can effectively control each production process and reduce procurement costs for our customers. We have a group of talented designers who have extensive experience in designing polyurethane solid wheels for different environments, all based on potential client needs.

Features
1. Each high quality PU wheel has a high resilience performance.

2. These wheels are known for their excellent wear resistance and small compression deformation.

3. When working in low temperatures (as low as -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.

4. Steel ring material:
- castings: QT450 x 10
- steel components: GB/T-20

5. Polyurethane wheels are 100% non-gumming.

Our raw materials are sourced from the German company Bayer, and the Japanese company Mitsubishi, and synthesize all polyurethane pre-polymer here in house. We are equipped with a strict assay laboratory, which allows us to ensure the matching accuracy in the production of each polyurethane wheel. In addition, all wheel centers for the electric forklift trucks are produced by us here at Yulin, so that we can guarantee that the polyurethane tread is effectively bonded to the metal wheel center, and will not be degummed through sand blasting, cleaning or drying.

Besides the Linde electric forklift truck wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for the brands like Jungheinrich, Hyster, BT, Noblelift, Hyundai, Clark, MIMA, etc. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels for warehouse material handling equipment with custom-made service.
