Our polyurethane solid wheels for forklift trucks include load bearing wheels, driving wheels, balance auxiliary wheels, press on wheels, and other wheel types. This page details the polyurethane wheels we produce for Noblelift electric forklift trucks.

Name of product	D (Diameter, mm)	H (Height, mm)	d1 (Hole diameter, mm)	d2 (Depth, mm)	Hole count
Driving wheel	252	88	165
Driving wheel	252	88	175
Driving wheel	230	70	45		5holes
Driving wheel	220	70	146		10holes
Auxiliary wheel	150	54/58	47	14
Auxiliary wheel	100	40	47	14

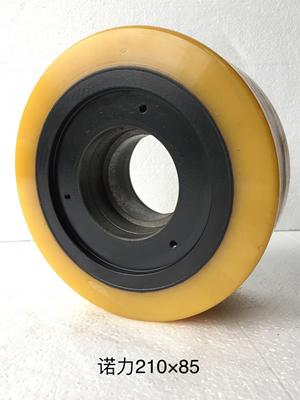

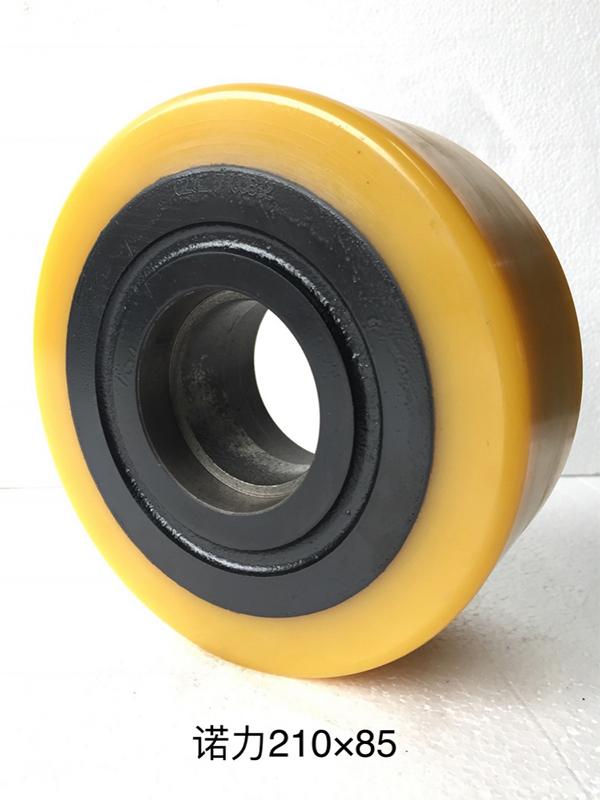

Auxiliary wheel	210	85	80
Load bearing wheel	80	93	47	14
Load bearing wheel	80	70	47	14

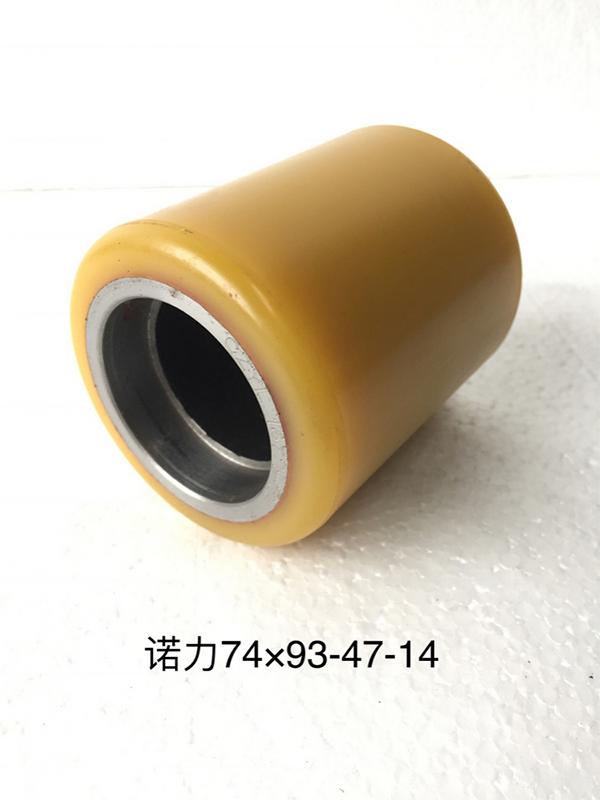

Load bearing wheel	74	93	47	14
Load bearing wheel	74	70	47	14

These polyurethane tyred wheels can be applied in the vehicles as follows:
Noblelift Manual pallet trucks: AC55, AC66, DF55, DF66, DFE, DF37, ER A44, ACL44, SAC44, ESE44, AC44HB, ACF44, DF55FT.
Noblelift electric stackers: SFH22AG, SFH22, SFH22G, SPN22, SPN22A.
Noblelift electric pallet trucks: PTE33X, PTE30, PTE40L, PTE45X, PE35L.
Noblelift reach trucks: ECL22M, PS22M, PS 35L, PS 30RP, PS 30RM, RT 33ST.

The polyurethane wheel treads and cat iron wheel centers used in the industrial polyurethane tire wheel are manufactured here at Yulin, so that we can effectively control each production process and reduce procurement costs for our customers. We have a group of talented designers who have extensive experience in designing polyurethane solid wheels for different environments, all based on potential client needs.

Features
1. Each high quality PU wheel has a high resilience performance.

2. These wheels are known for their excellent wear resistance and small compression deformation.

3. When working in low temperatures (as low as -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.

4. Steel ring material:
- castings: QT450 x 10
- steel components: GB/T-20

5. Polyurethane wheels are 100% non-gumming.

Our raw materials are sourced from the German company Bayer, and the Japanese company Mitsubishi, and synthesize all polyurethane pre-polymer here in house. We are equipped with a strict assay laboratory, which allows us to ensure the matching accuracy in the production of each polyurethane wheel. In addition, all wheel centers for the electric forklift trucks are produced by us here at Yulin, so that we can guarantee that the polyurethane tread is effectively bonded to the metal wheel center, and will not be degummed through sand blasting, cleaning or drying.

Besides the Noblelift electric forklift truck wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for the brands like Linde, Jungheinrich, Hyster, Hyundai, Clark, TCM, etc. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels for warehouse material handling equipment with custom-made service.
