BT Electric Forklift Truck Wheel

Our polyurethane solid wheels for forklift trucks include load bearing wheels, driving wheels, balance auxiliary wheels, press on wheels, and other wheel types. This page details the polyurethane wheels we produce for BT electric forklift trucks.

Driving wheels

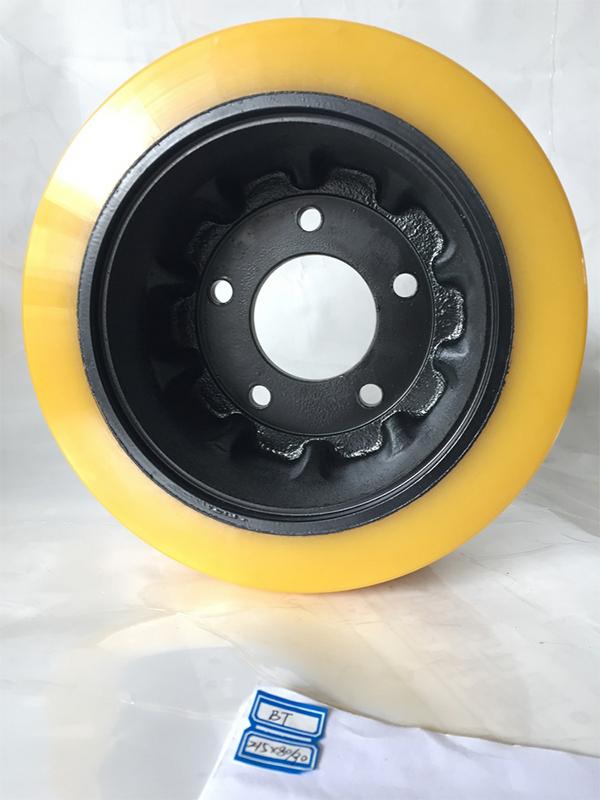

  • Dia.215 x 90-(reverse side)

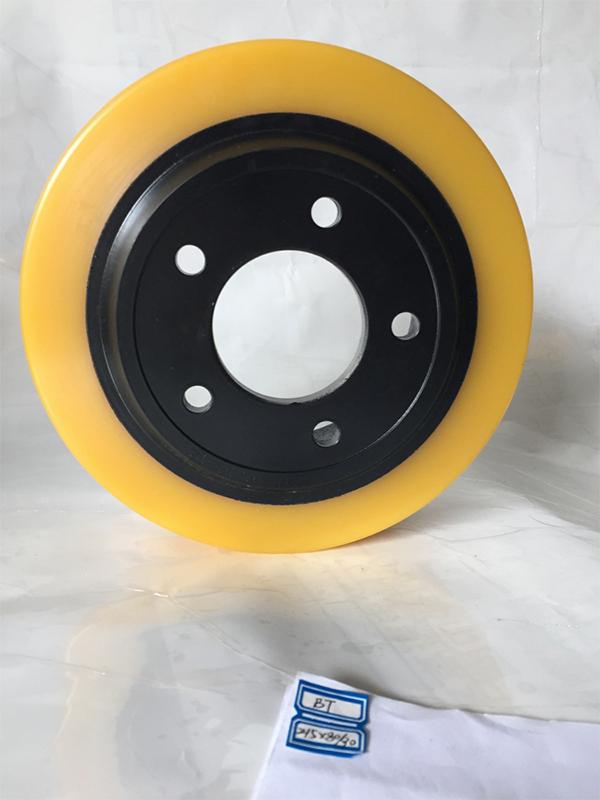

  • Dia.215 x 90(obverse side)

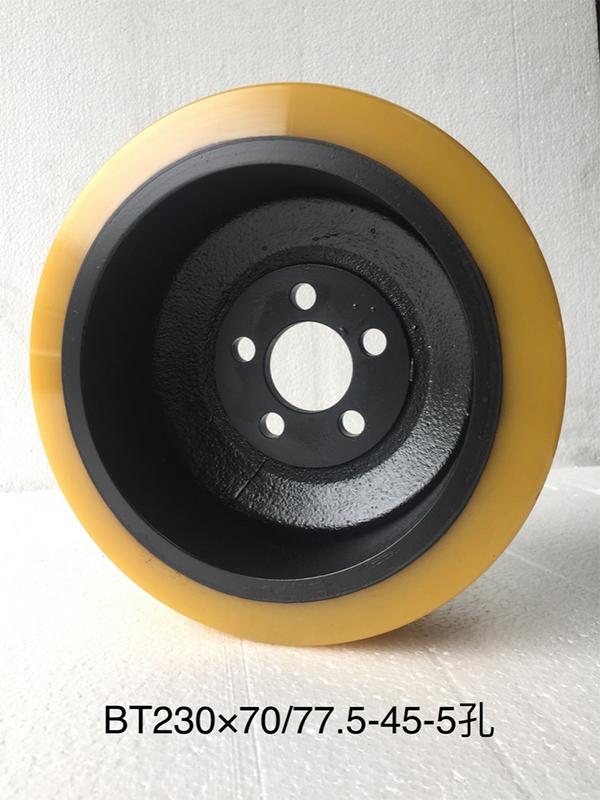

  • Dia.230 x 70(reverse side)

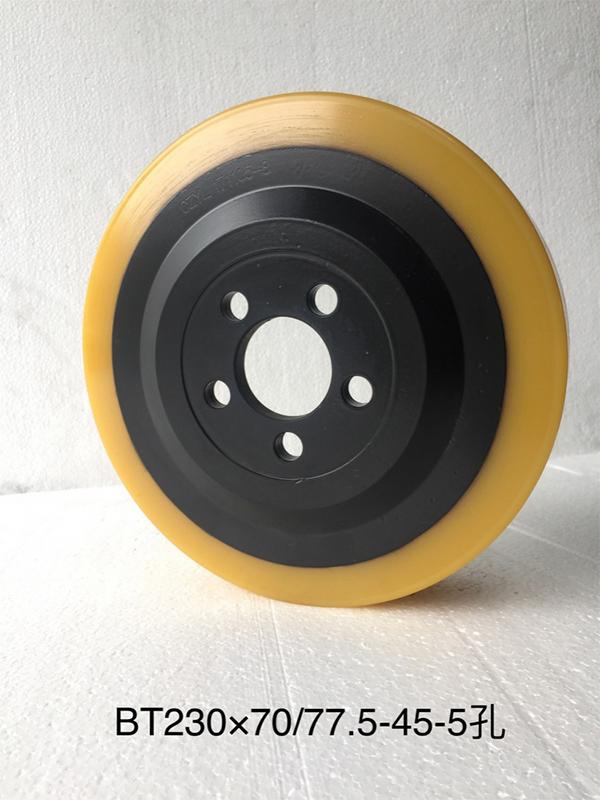

  • Dia.230 x 70-5 holes(obverse side)

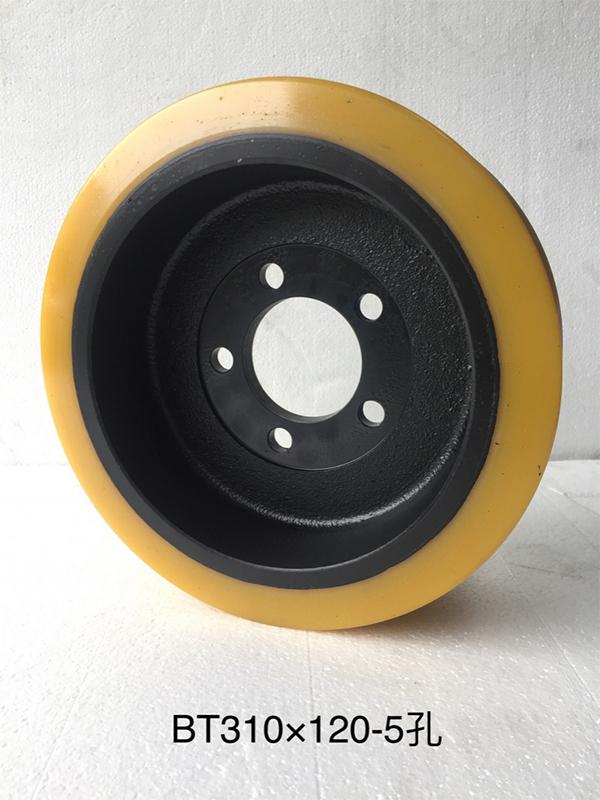

  • Dia.310*120-5 holes (reverse side)

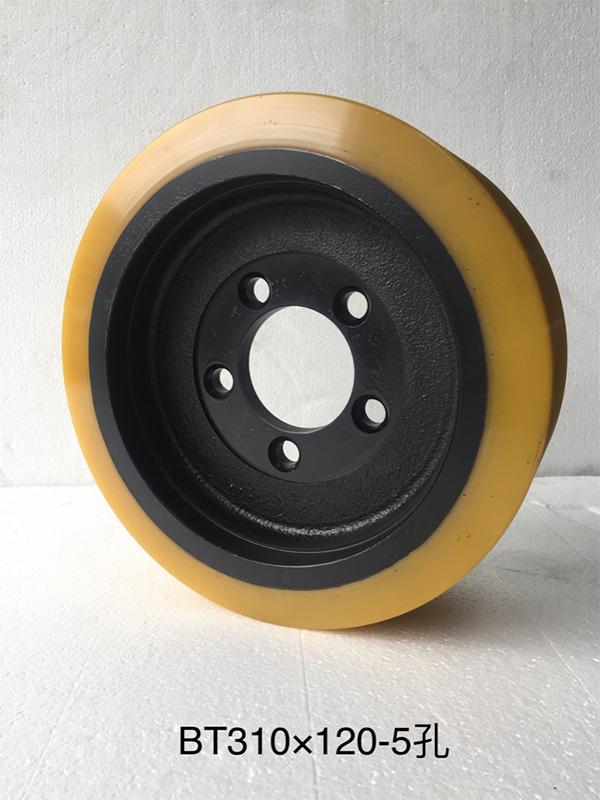

  • Dia.310 x 120-5 holes (obverse side)

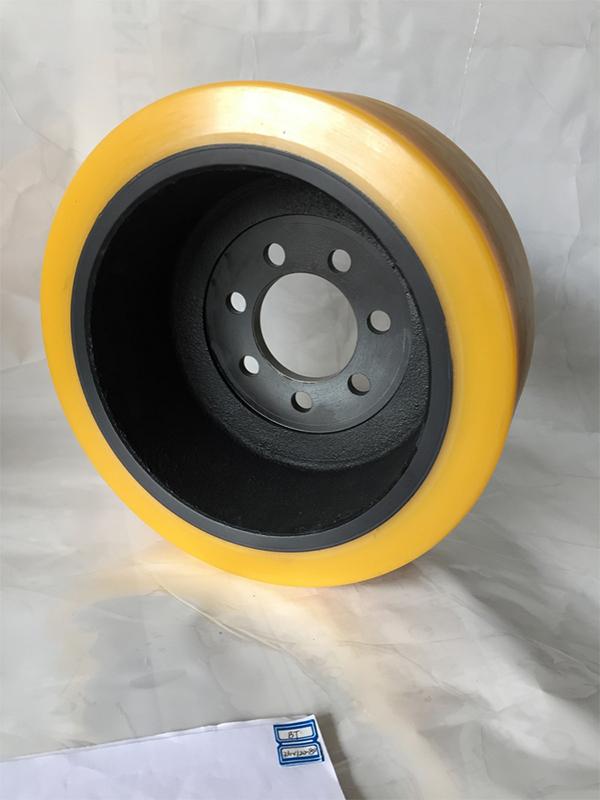

  • Dia.310 x 120-7 holes (reverse side)

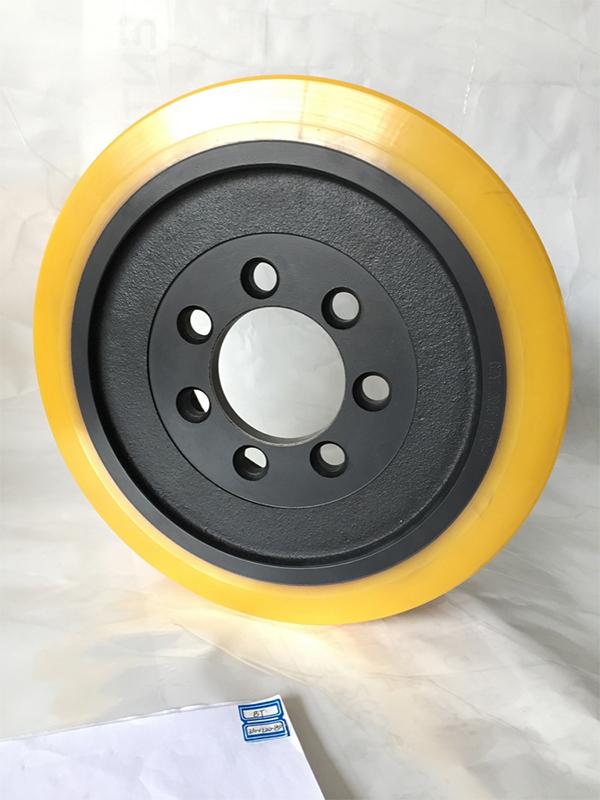

  • Dia.310 x 120-7 holes (obverse side)
Load bearing wheels

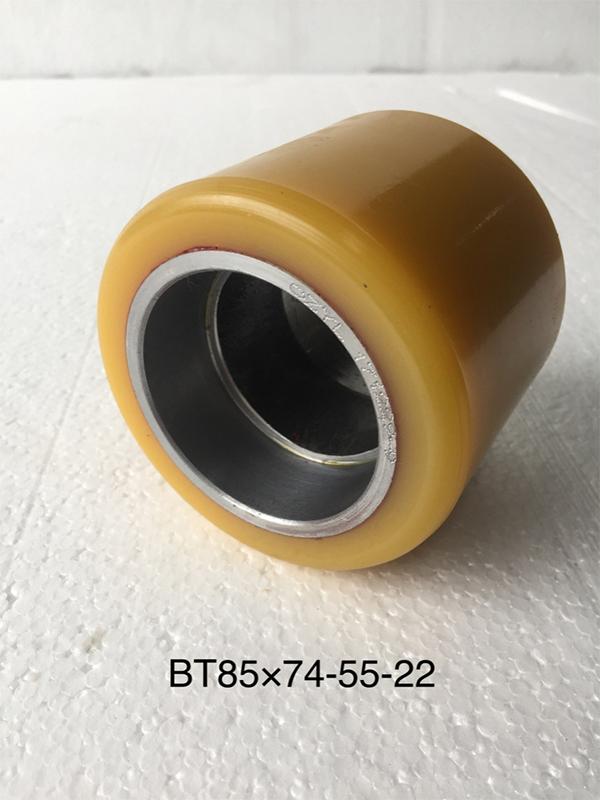

  • Dia.85 x 74-55-22
Auxiliary wheels

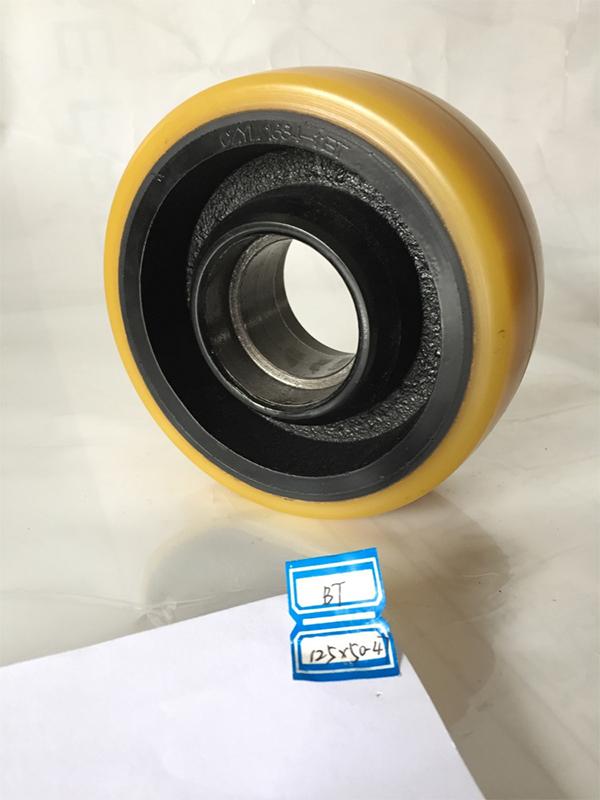

  • Dia.125 x 50
Size select:
Name of product D (Diameter, mm) H (Height, mm) d1 (Hole diameter, mm) Load-bearing (Kg) Hole count
Driving wheel 343 140
Driving wheel 310 120 7holes
Driving wheel 310 120 5 holes
Driving wheel 330 145 194 2400
Driving wheel 230 70/77 45 5 holes
Driving wheel 215 76.5/90
Driving wheel 343 136 80
Driving wheel 350 127
Load bearing wheel 85 74
Load bearing wheel 305 106
Load bearing wheel 285 75
Load bearing wheel 300 100
Load bearing wheel 85 70
Load bearing wheel 350 105
Load bearing wheel 254 120 190 1680
Auxiliary wheel 150 80 750
Auxiliary wheel 125 50 47

These polyurethane tyred wheels can be applied in the vehicles as follows:
BT hand pallet trucks
: LHM series, LHT series, HHM100, HHL100, HHM100I, HHL100I, SHM080, SHL080
BT order pickers: OSE120, OSE200X, OSE180XP, OSE250, OSE100, OSE100W, OSE120CB, OME100N, OME100NW, OME 100M, OME100H, OME120HW
BT pedestrian pallet trucks: LWE130, LWE160, LWE180, LWE200, LWE250, LPE, LPE220, LPE250, LSE200, LRE200, LRE300, LRE300T
BT reach trucks: RRE140H, RRT160H, RRE200H, RRE250H, RRE120M, RRE140M, RRE160M, FRE270
BT tow tractors: TWE100, TSE100, TSE100W, TSE300, TSE500
BT narrow aisle trucks: VRE 125SF, VRE125, VRE150, VCE100, VCE120, VCE135, VCE150A.

The polyurethane wheel treads and cat iron wheel centers used in the industrial polyurethane tire wheel are manufactured here at Yulin, so that we can effectively control each production process and reduce procurement costs for our customers. We have a group of talented designers who have extensive experience in designing polyurethane solid wheels for different environments, all based on potential client needs.

Features
1. Each high quality PU wheel has a high resilience performance.

2. These wheels are known for their excellent wear resistance and small compression deformation.

3. When working in low temperatures (as low as -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.

4. Steel ring material:
- castings: QT450 x 10
- steel components: GB/T-20

5. Polyurethane wheels are 100% non-gumming.

Our raw materials are sourced from the German company Bayer, and the Japanese company Mitsubishi, and synthesize all polyurethane pre-polymer here in house. We are equipped with a strict assay laboratory, which allows us to ensure the matching accuracy in the production of each polyurethane wheel. In addition, all wheel centers for the electric forklift trucks are produced by us here at Yulin, so that we can guarantee that the polyurethane tread is effectively bonded to the metal wheel center, and will not be degummed through sand blasting, cleaning or drying.

Besides the BT electric forklift truck wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for the brands like Jungheinrich, Hyster, Noblelift, Hyundai, HELI, MIMA, etc. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels for warehouse material handling equipment with custom-made service.
