Our polyurethane solid wheels for forklift trucks include load bearing wheels, driving wheels, balance auxiliary wheels, press on wheels, and other wheel types. This page details the polyurethane wheels we produce for Jugenheinrich electric forklift trucks.
|Name of product||D (Diameter, mm)||H (Height, mm)||d1 (Hole diameter, mm)||d2 (Depth, mm)||Hole count|

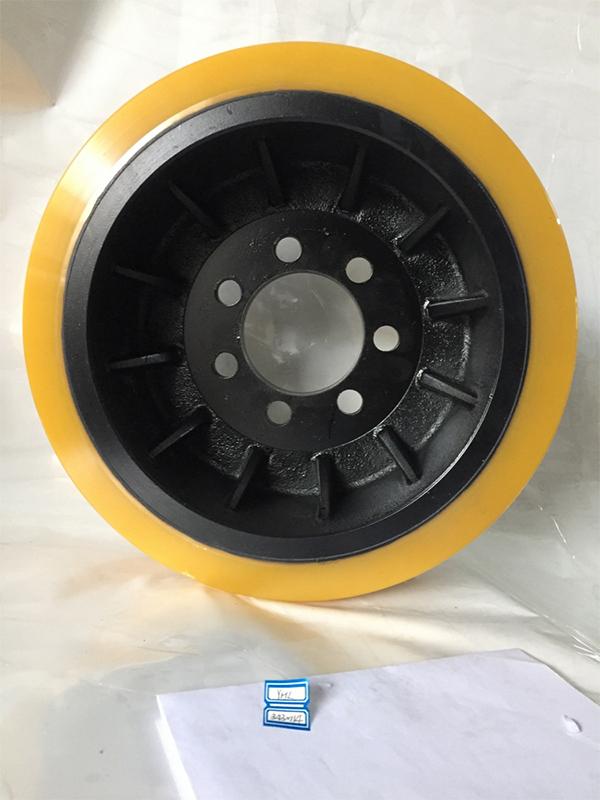

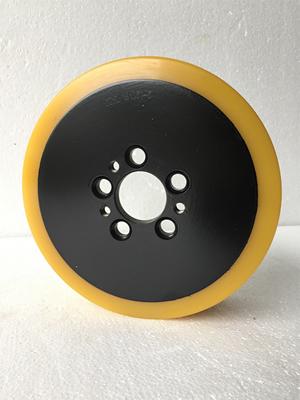

|Driving wheel||400||160||110||8 holes|

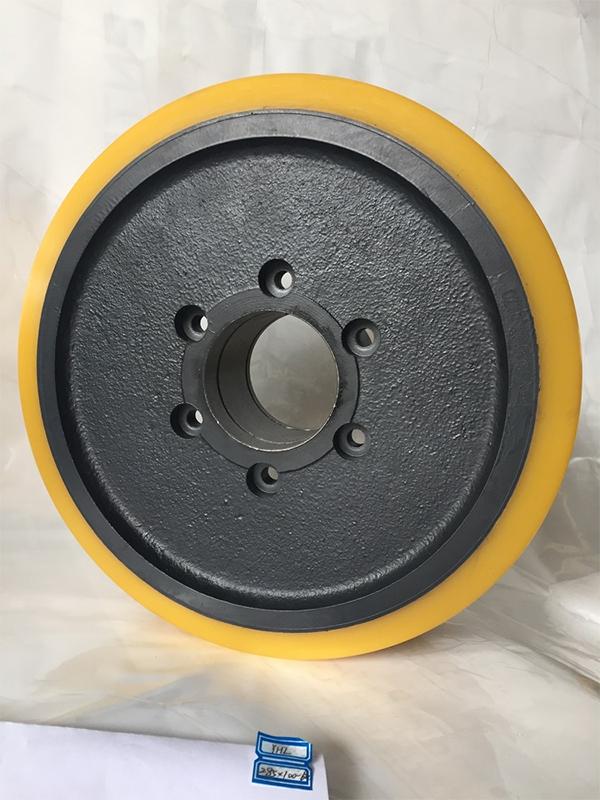

|Load bearing wheel||350||106||63||6 holes|

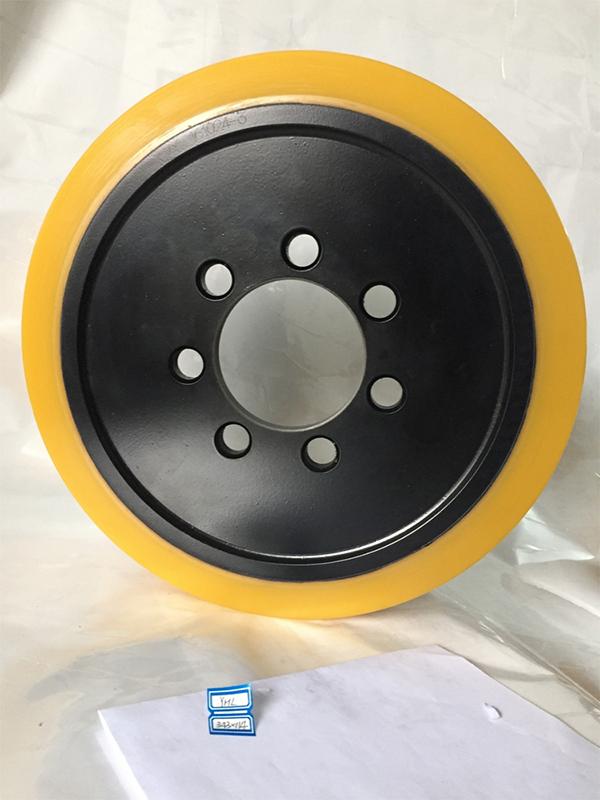

|Driving wheel||343||114||90||7 holes|
|Load bearing wheel||285||100||68||6 holes|

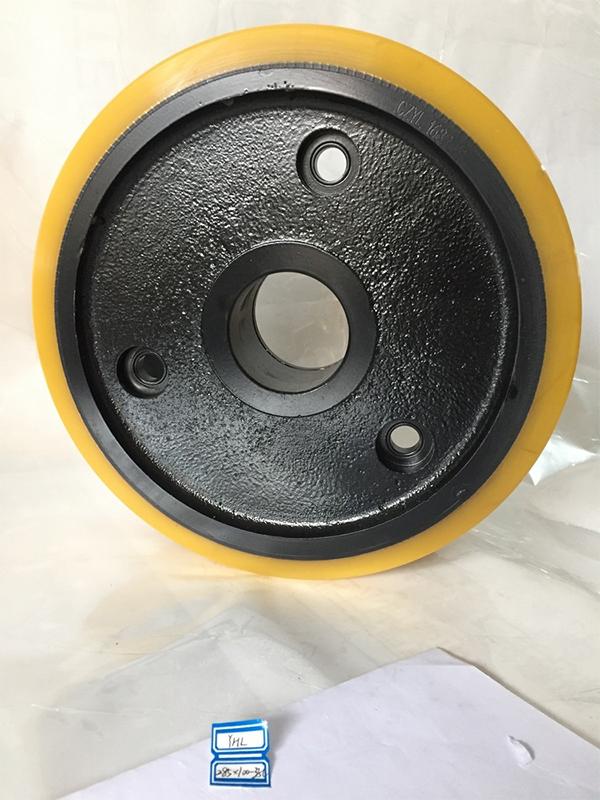

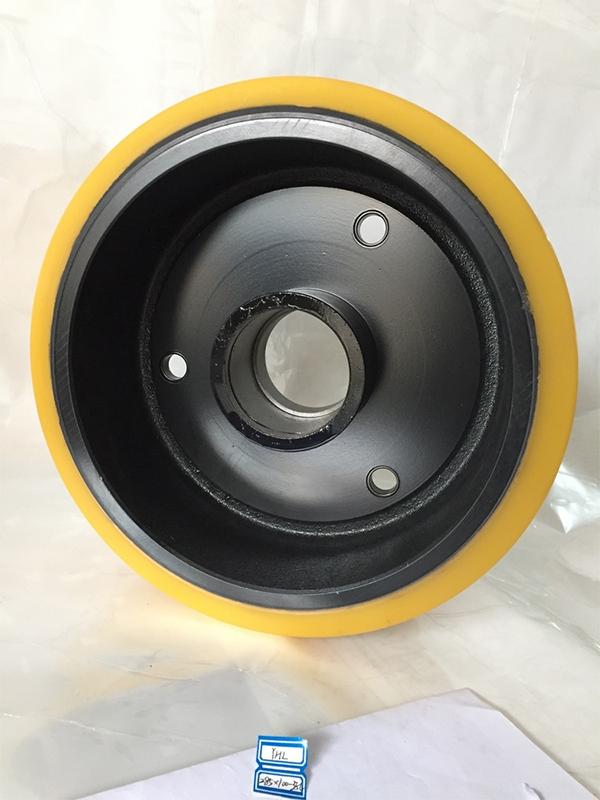

|Load bearing wheel||285||100||68||3 holes|

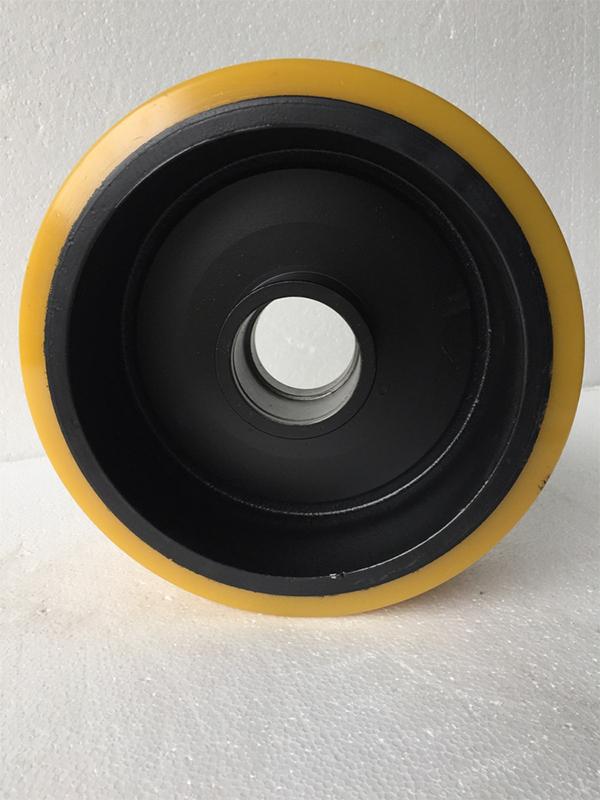

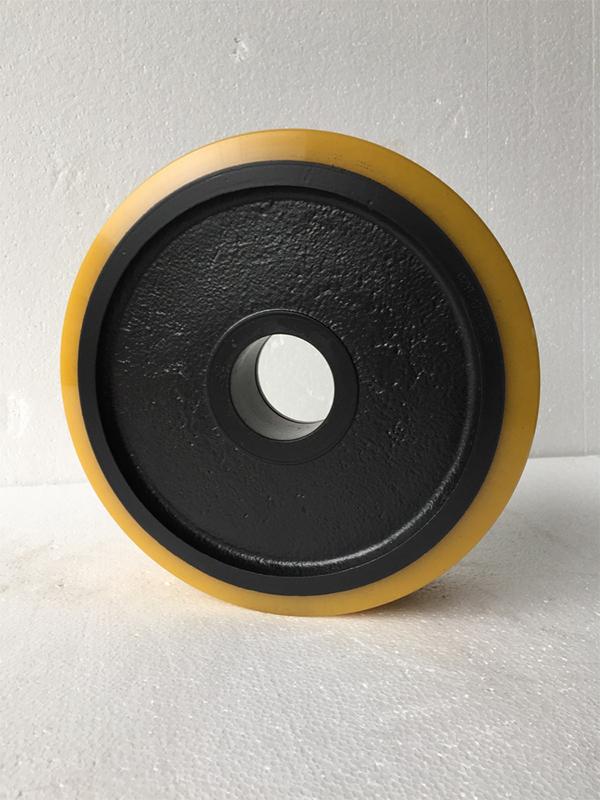

|Load bearing wheel||285||100||68||No hole|
|Load bearing wheel||82||70||47||16|
|Driving wheel||230||70/82||45||5 holes|
|Driving wheel||230||82||45||5 holes|
|Load bearing wheel||85||110||55||22.5|
|Load bearing wheel||85||85||55||20|
|Load bearing wheel||85||55||55||20|
These polyurethane tyred wheels can be applied in the vehicles as follows:
Jungheinrich hand Pallet Trucks: AM22, AM15l, AM30, AM VO5, AMW22/22P, AMX10/10E, AMG20, AM120, HC110.
Jungheinrich electric pedestrian trucks: EJE M13, EJE M15, EJE116, EJE118, EJE120, EJE112i, EJE220, EJE C20, ERE120, ESE120, ESE420, ESE533.
Jungheinrich electric stacker trucks: EJC M10E, EJC M10, EMC 110, EJC110, EJC112, EJC212, EJC214, EJC216, EJC220, EJC B12, EJC212, ESC214, ESC316.
Jungheinrich reach trucks: ETV110, ETV112, ETV214, ETV216, ETV318, ETV320, ETV325, ETV Q20, ETV C16, ETV C20, ETR 230, ETR 235, ETR340
Jungheinrich order pickers: ECE 220, ECE225, ECE310, ECD320, ECR327, ECR336, EKM202, EKS110, EKS210, EKS312
Jungheinrich tow tractors: EZS010, EZS130, EZS350, EZS C40.
Jungheinrich trailer: GTP 110, GTE106.
Jungheinrich rack stackers: EFX410, EFX413, ETX513, ETX515, EKX410, EKX412, EKX514, EKX516.
The polyurethane wheel treads and cat iron wheel centers used in the industrial polyurethane tire wheel are manufactured here at Yulin, so that we can effectively control each production process and reduce procurement costs for our customers. We have a group of talented designers who have extensive experience in designing polyurethane solid wheels for different environments, all based on potential client needs.
1. Each high quality PU wheel has a high resilience performance.
2. These wheels are known for their excellent wear resistance and small compression deformation.
3. When working in low temperatures (as low as -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.
4. Steel ring material:
- castings: QT450 x 10
- steel components: GB/T-20
5. Polyurethane wheels are 100% non-gumming.
Our raw materials are sourced from the German company Bayer, and the Japanese company Mitsubishi, and synthesize all polyurethane pre-polymer here in house. We are equipped with a strict assay laboratory, which allows us to ensure the matching accuracy in the production of each polyurethane wheel. In addition, all wheel centers for the electric forklift trucks are produced by us here at Yulin, so that we can guarantee that the polyurethane tread is effectively bonded to the metal wheel center, and will not be degummed through sand blasting, cleaning or drying.
Besides the Jungheinrich electric forklift truck wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for the brands like Linde, Hyster, Noblelift, Hyundai, Clark, MIMA, TCM, Daewoo, etc. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels for warehouse material handling equipment with custom-made service.
