HC Electric Forklift Truck Wheel

Our polyurethane solid wheels for forklift trucks include load bearing wheels, driving wheels, balance auxiliary wheels, press on wheels, and other wheel types. They can be used for reach electric forklift truck, stacking truck, narrow aisle forklift truck, pallet truck, etc. This page details the polyurethane wheels we produce for HC electric forklift trucks.

Driving wheels

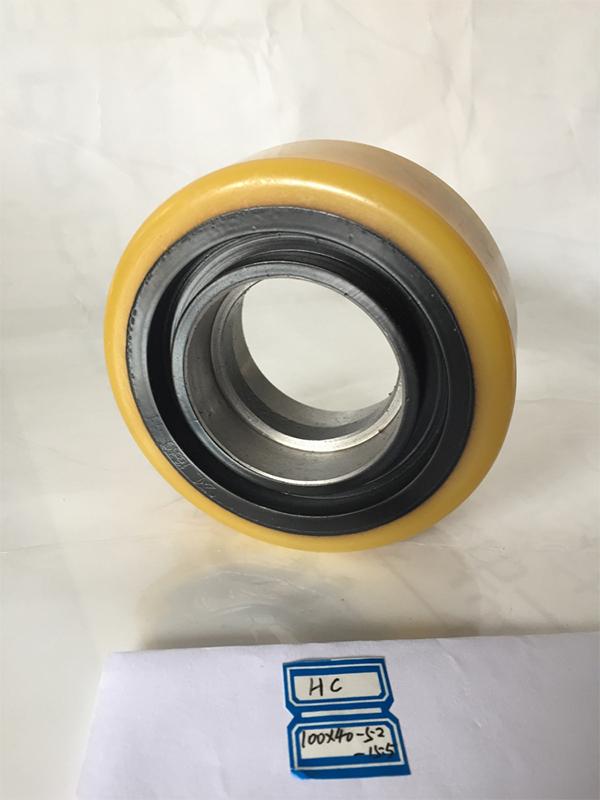

  • Dia.100 x 40-52

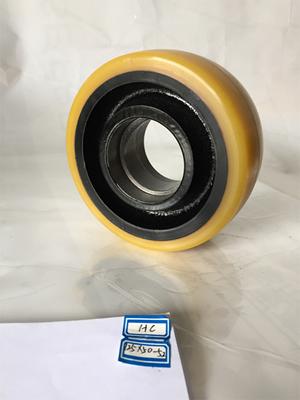

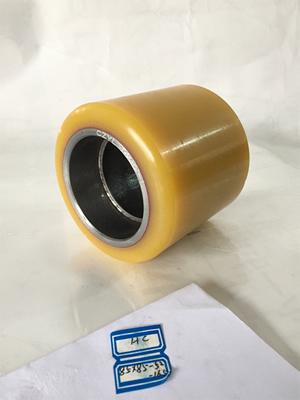

  • Dia.125 x 50

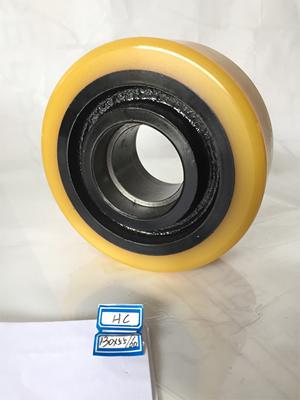

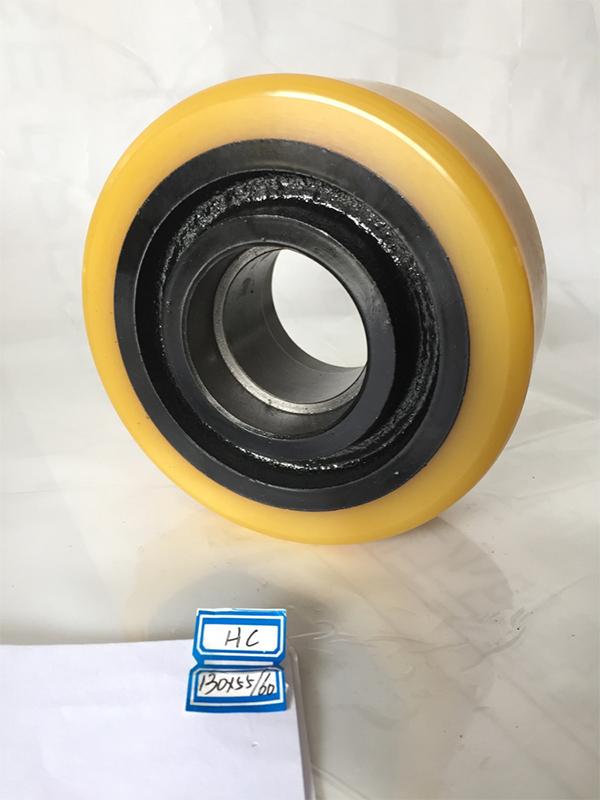

  • Dia.130 x 60

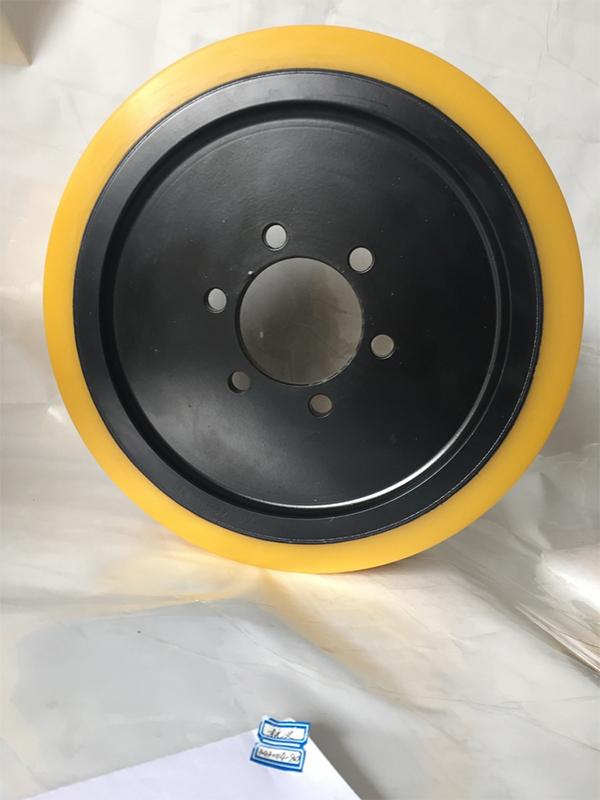

Load bearing wheels

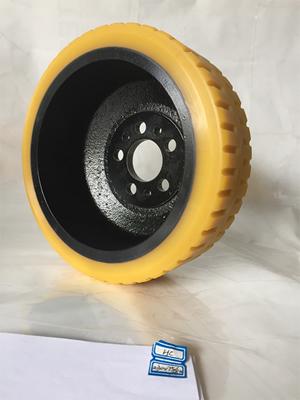

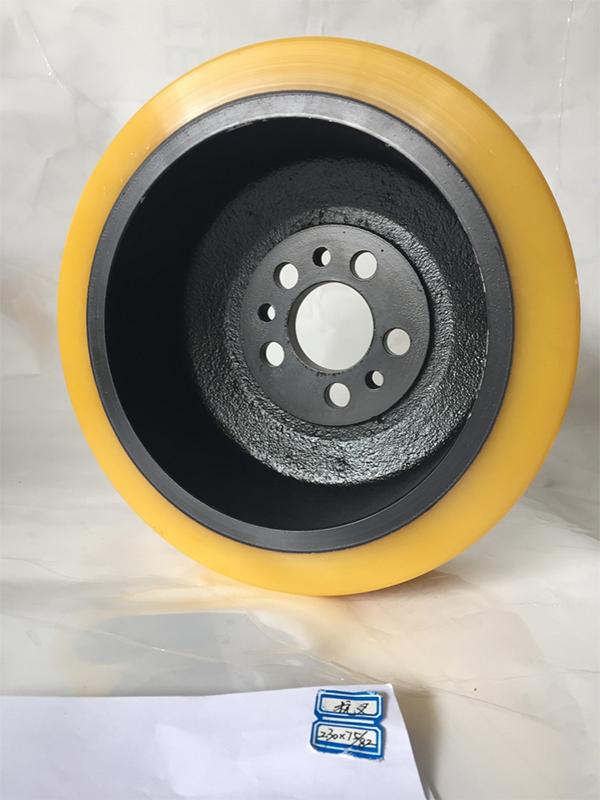

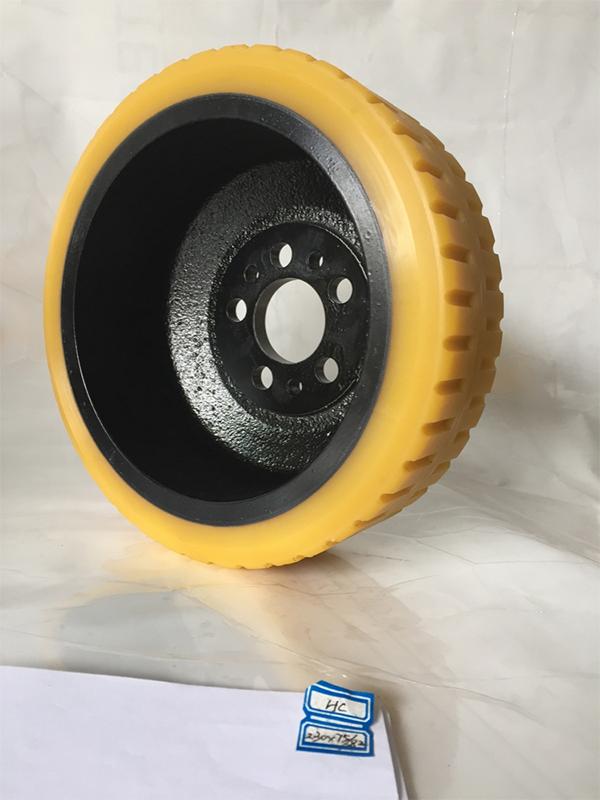

  • Dia.230 x 75(reverse side)

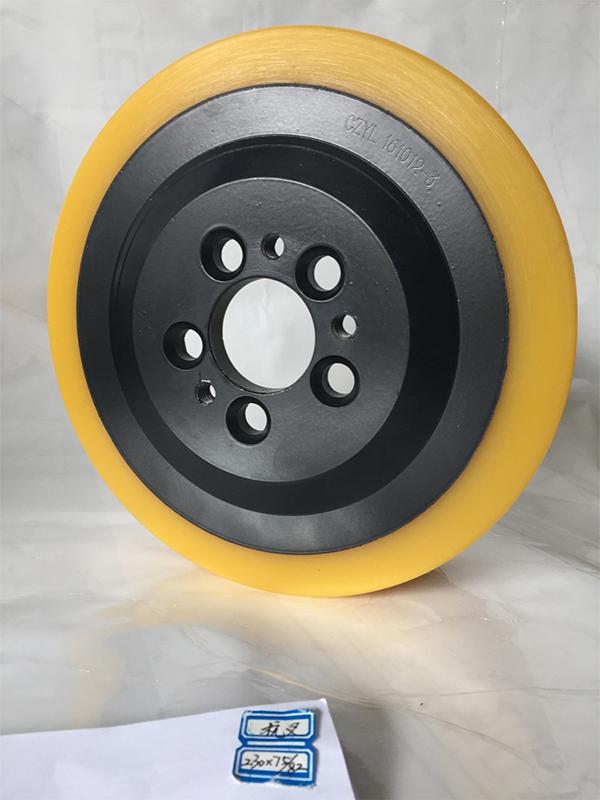

  • Dia. 230 x 75(obverse side)

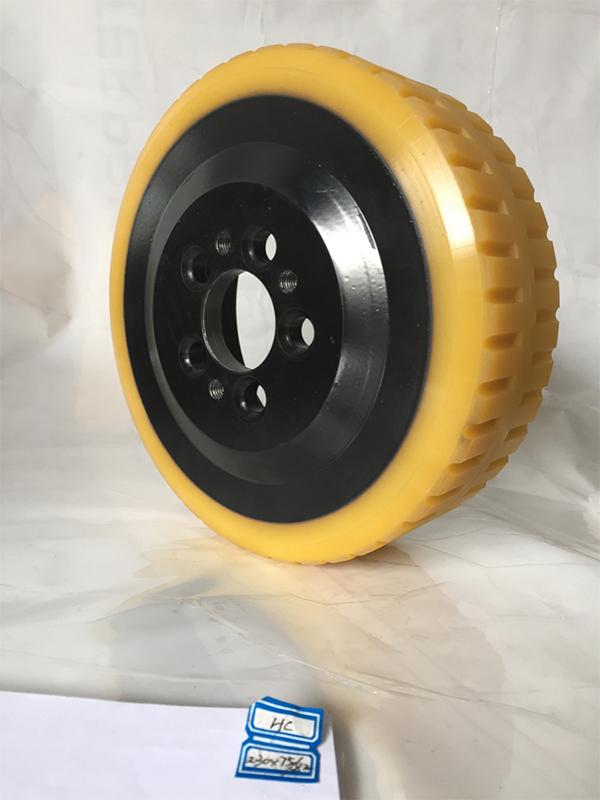

  • Dia.230 x 75- straight grain antiskid (reverse side)
  • Dia.230 x 75- straight grain antiskid (obverse side)

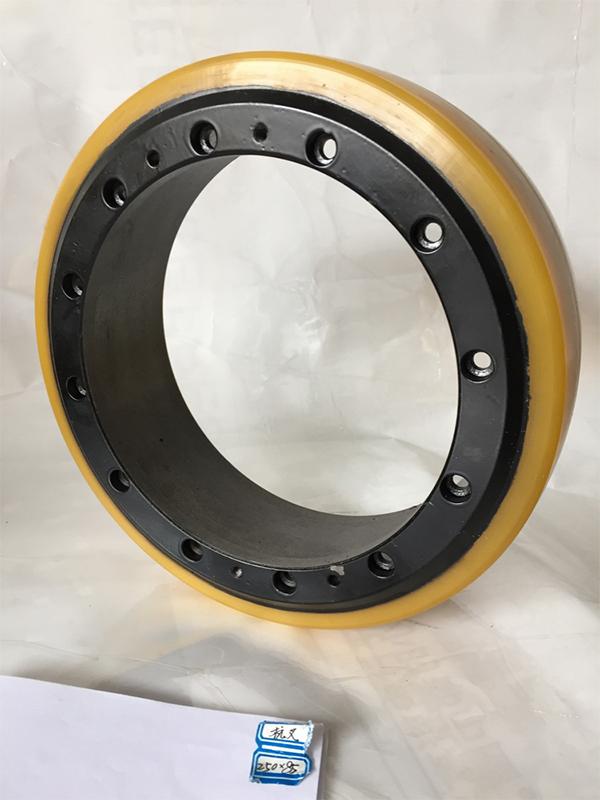

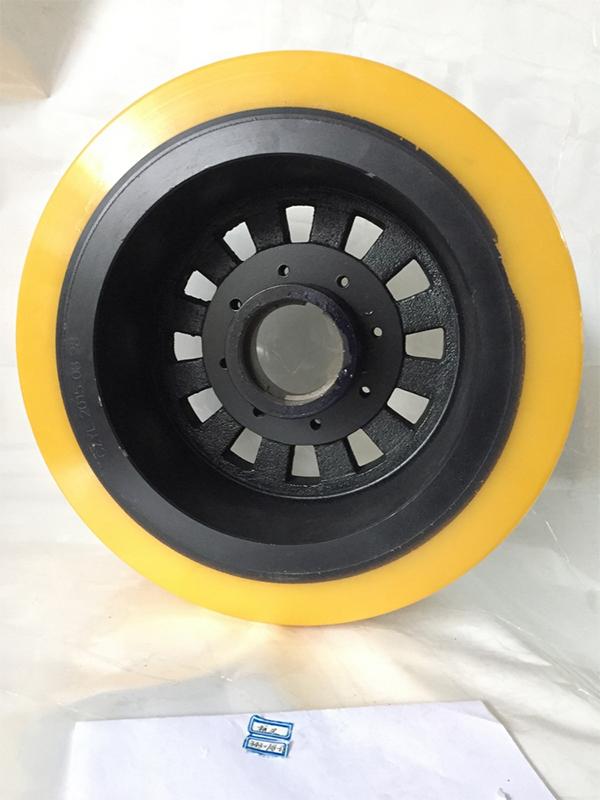

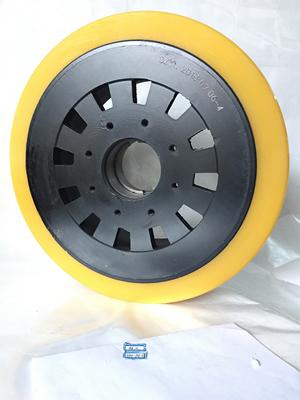

  • Dia.250 x 85-12holes(reverse side)
  • Dia.250 x 85-12holes(obverse side)

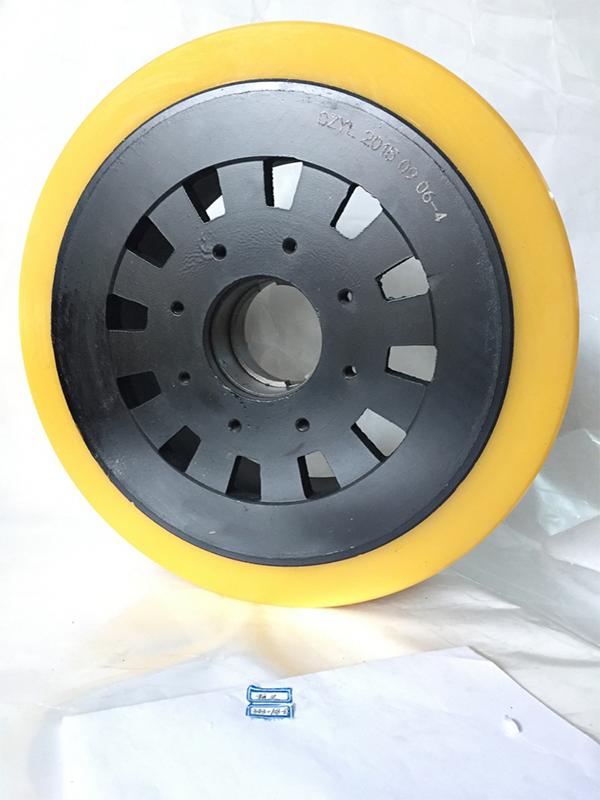

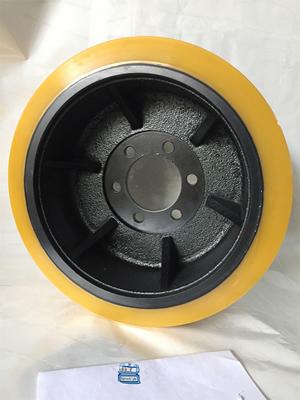

  • Dia.343-108(reverse side)
  • Dia.343-108(obverse side)

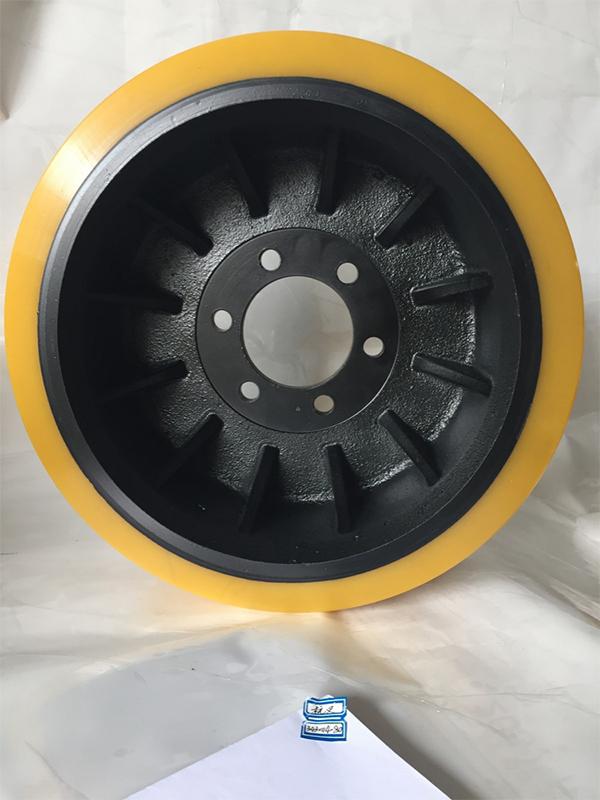

  • Dia.343 x 114(reverse side)
  • Dia.343 x 114(obverse side)
  • Dia. 343 x 135(reverse side)
  • Dia.343 x 135(obverse side)

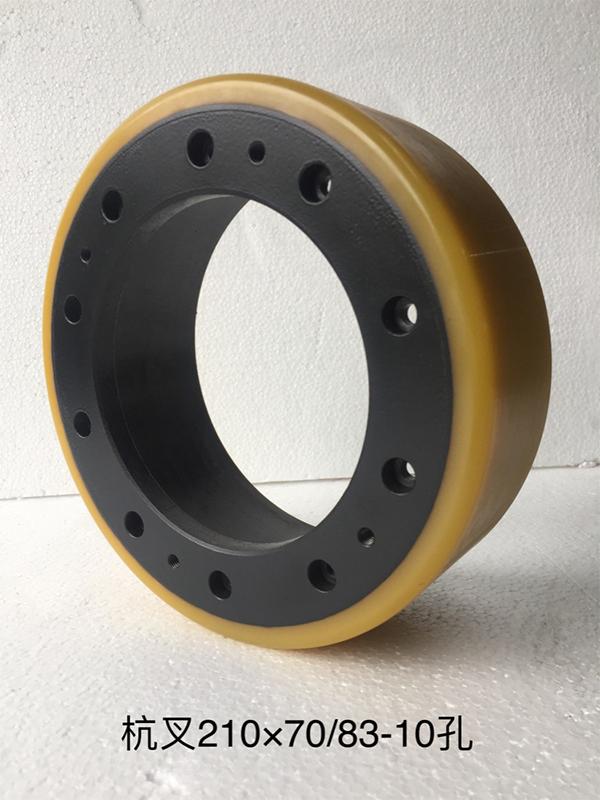

  • Dia.210 x 70(obverse side)
  • Dia.210 x 70-12(reverse side)

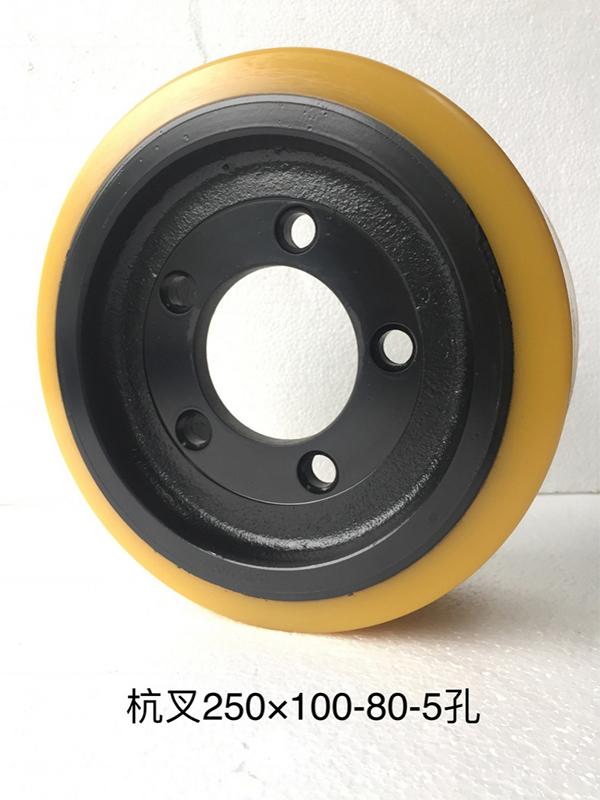

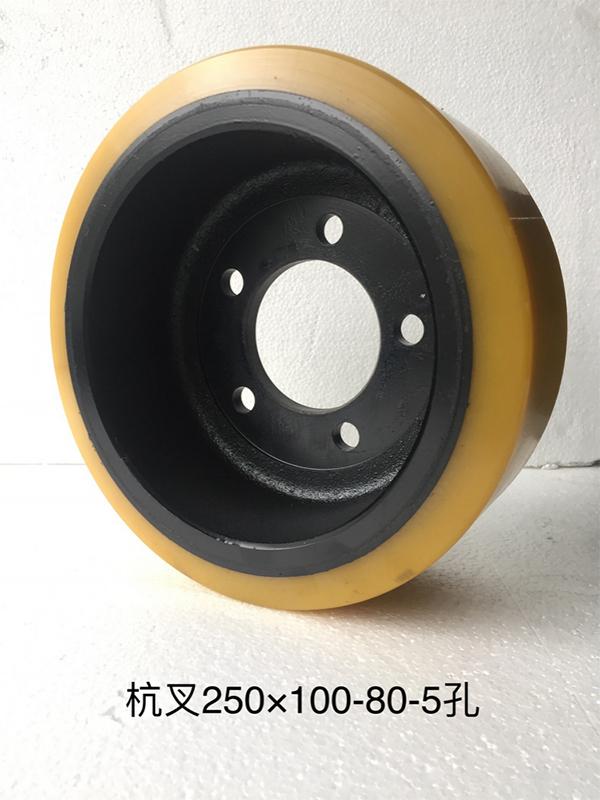

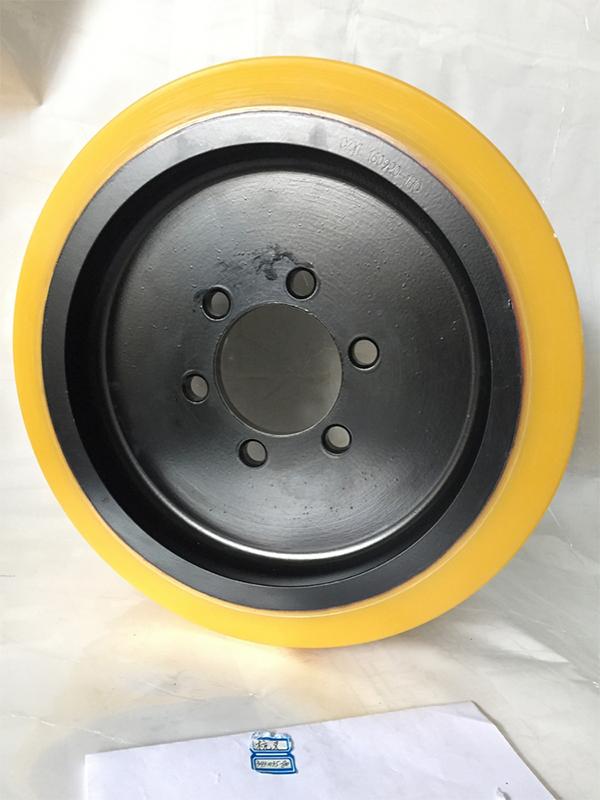

  • Dia.250 x 100-80-5holes(reverse side)
  • Dia.250 x 100-80-5holes(obverse side)
Auxiliary wheels

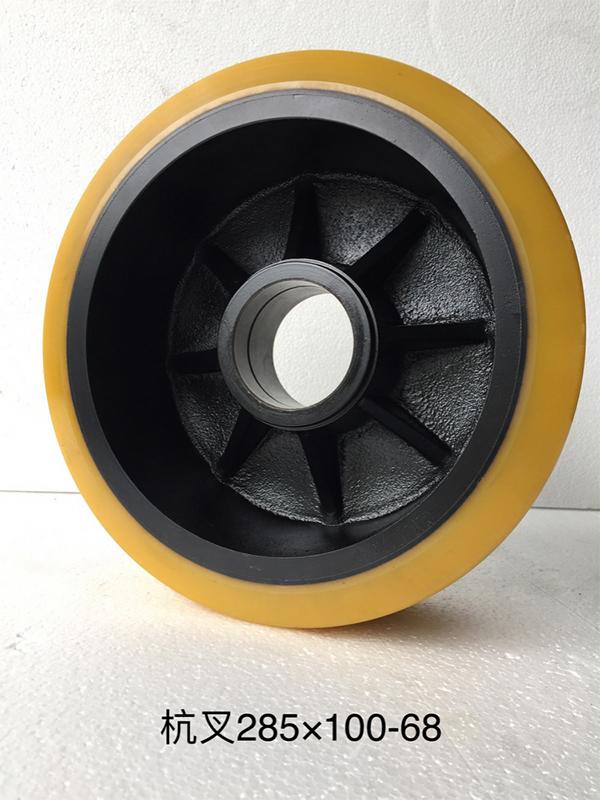

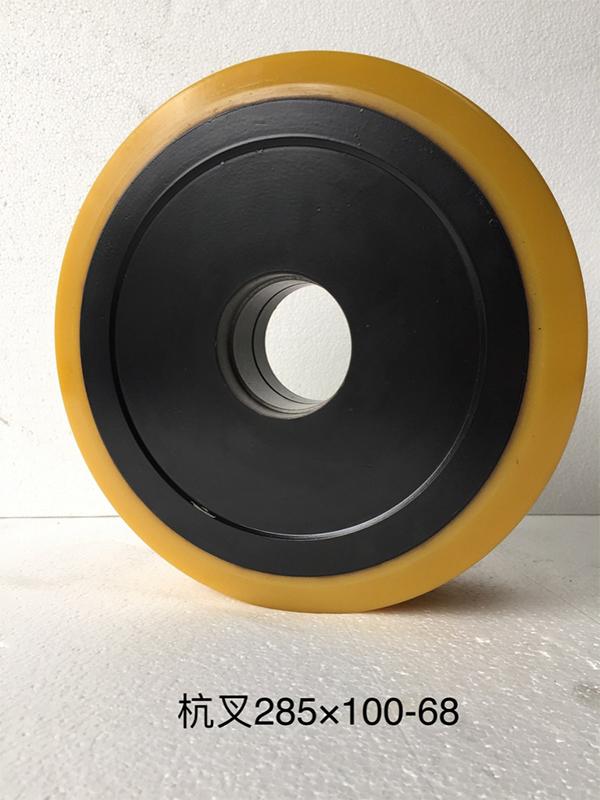

  • Dia.285 x 100-68(reverse side)
  • Dia.285 x 100-68(obverse side)

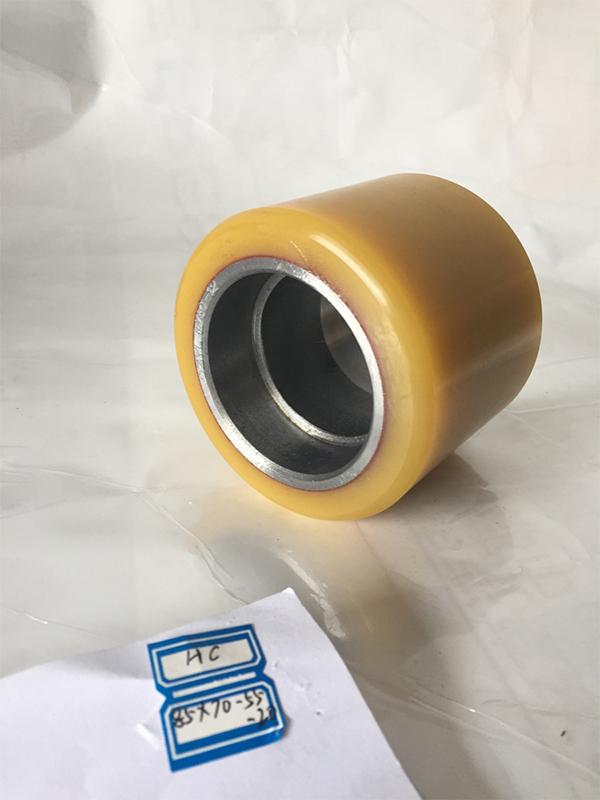

  • Dia.85 x 70-55-20
  • Dia. 85 x 85-52

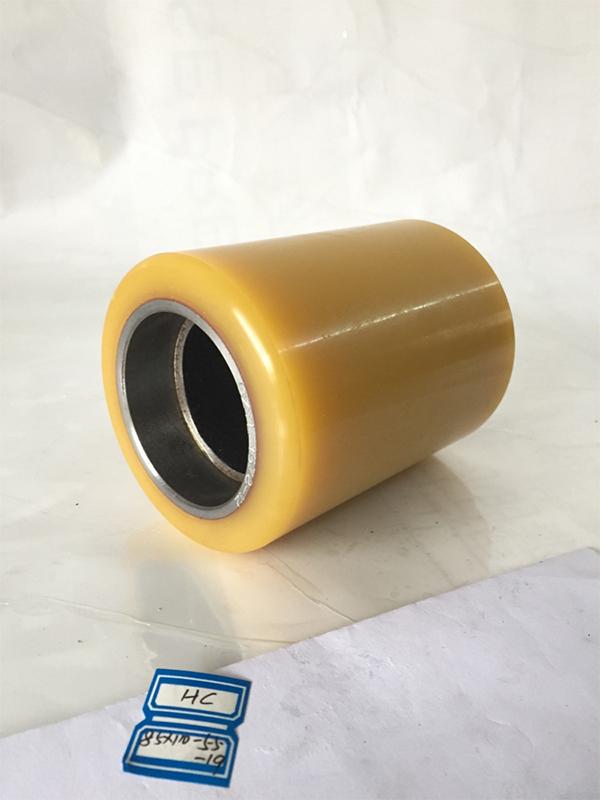

  • Dia.85 x 110

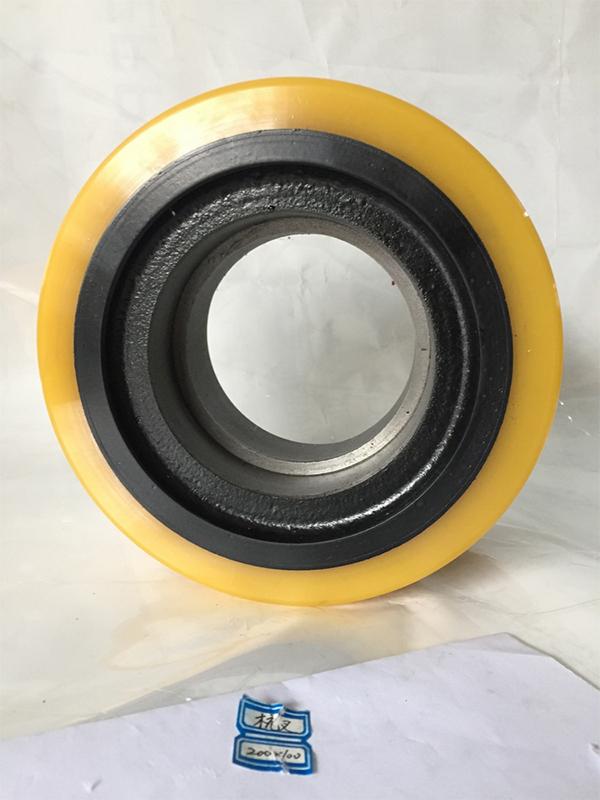

  • Dia.200 x 100
Size select:
Name of product D (Diameter, mm) H (Height, mm) d1 (Hole diameter, mm) d2 (Depth, mm) load-bearing (Kg) Hole count
Driving wheel 343 114 80 2350 6holes
Driving wheel 343 108 68 8 holes
Driving wheel 250 84 175 12 holes
Driving wheel 250 100 5 holes
Driving wheel 230 75/82 45 1050 5 holes
Driving wheel 210 70/83 10 holes
Auxiliary wheel 140 55 52 15.6
Auxiliary wheel 130 55/60 52 16 570
Auxiliary wheel 125 50 52 15
Auxiliary wheel 100 40 52 15.5
Load bearing wheel 85 110 55 19
Load bearing wheel 85 100 55 19
Load bearing wheel 85 70 55 20 450
Load bearing wheel 85 85 52 16.5 500
Load bearing wheel 74 48 47 14
Load bearing wheel 285 100 68 1960
Load bearing wheel 200 100 110

The polyurethane wheel treads and cat iron wheel centers used in the industrial polyurethane tire wheel are manufactured here at Yulin, so that we can effectively control each production process and reduce procurement costs for our customers. We have a group of talented designers who have extensive experience in designing polyurethane solid wheels for different environments, all based on potential client needs.

Features
1. Each high quality PU wheel has a high resilience performance.

2. These wheels are known for their excellent wear resistance and small compression deformation.

3. When working in low temperatures (as low as -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.

4. Steel ring material:
- castings: QT450 x 10
- steel components: GB/T-20

5. Polyurethane wheels are 100% non-gumming.

Our raw materials are sourced from the German company Bayer, and the Japanese company Mitsubishi, and synthesize all polyurethane pre-polymer here in house. We are equipped with a strict assay laboratory, which allows us to ensure the matching accuracy in the production of each polyurethane wheel. In addition, all wheel centers for the electric forklift trucks are produced by us here at Yulin, so that we can guarantee that the polyurethane tread is effectively bonded to the metal wheel center, and will not be degummed through sand blasting, cleaning or drying.

Besides the HC electric forklift truck wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for the brands like Linde, Jungheinrich, Hyster, Noblelift, Hyundai, MIMA, Daewoo, etc. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels for warehouse material handling equipment with custom-made service.
