Our polyurethane solid wheels for forklift trucks include load bearing wheels, driving wheels, balance auxiliary wheels, press on wheels, and other wheel types. They can be used for reach electric forklift truck, stacking truck, narrow aisle forklift truck, pallet truck, etc. This page details the polyurethane wheels we produce for HELI electric forklift trucks.
Driving wheels

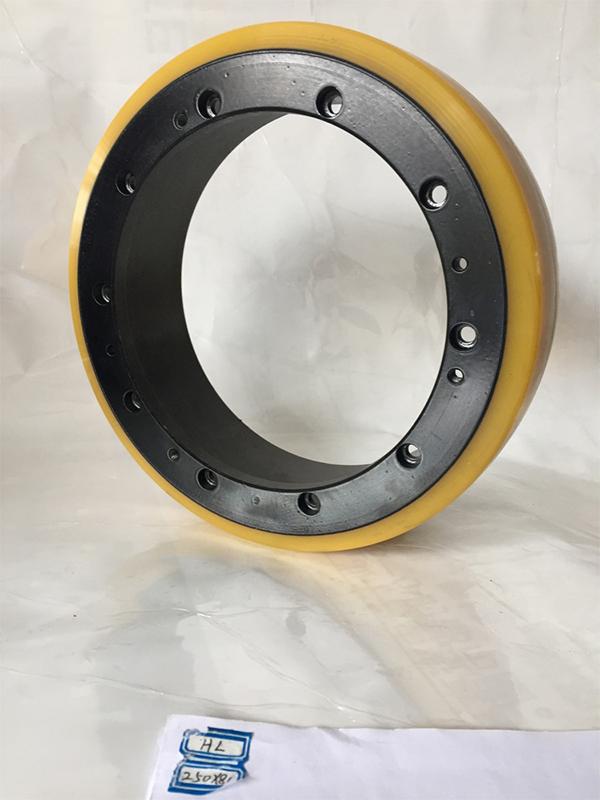

Dia.250 x 80-(reverse side)
Dia.250 x 80(obverse side)

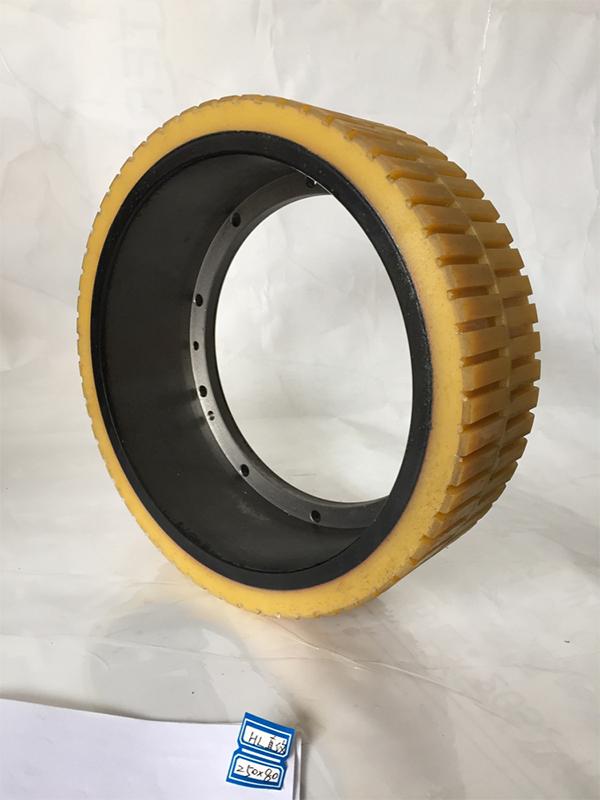

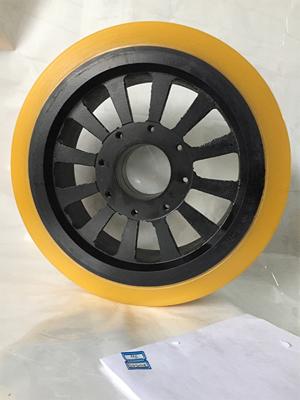

Dia.250 x 80-10holes straight grain antiskid (reverse side)

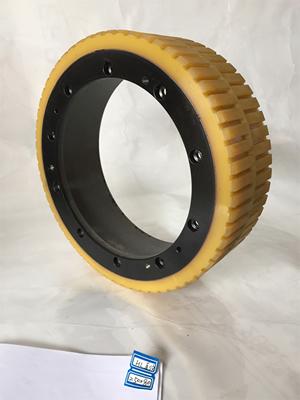

Dia.250 x 80-10holes straight grain antiskid (obverse side)

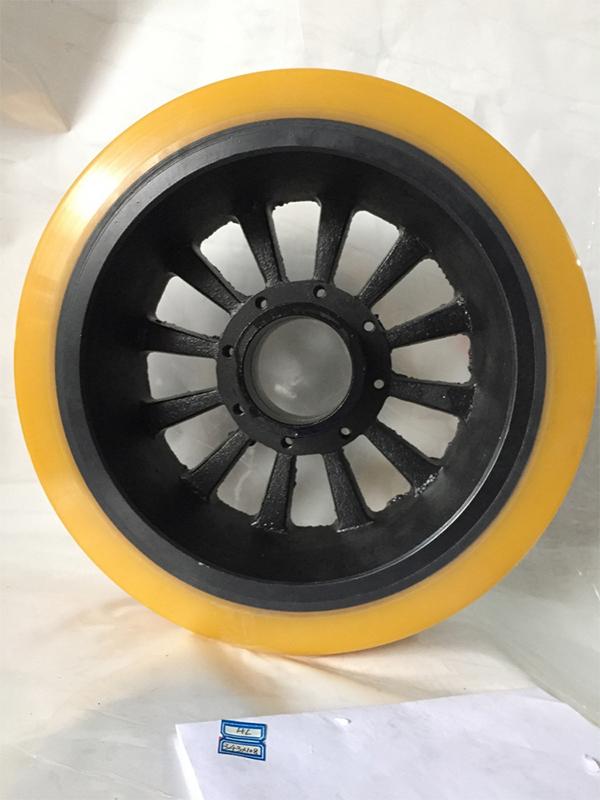

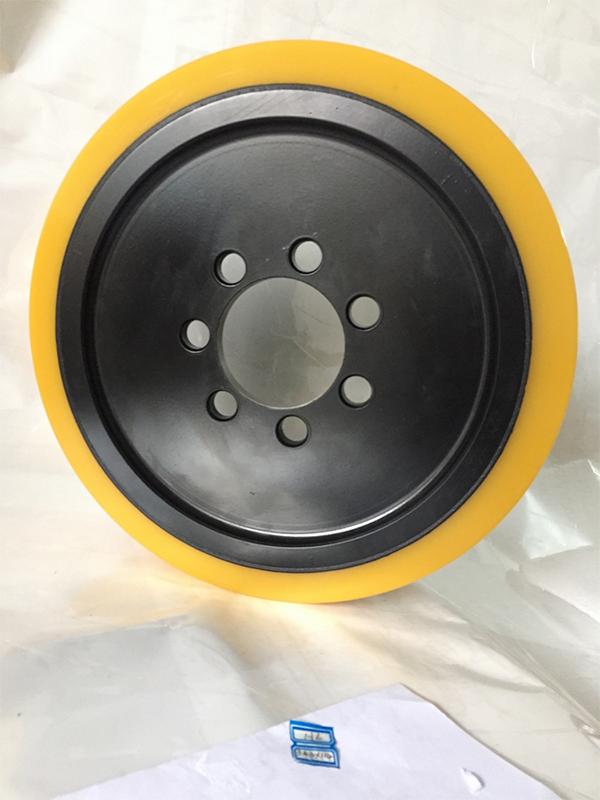

Dia.343 x 108(reverse side)

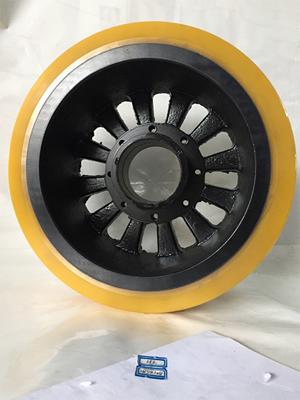

Dia.343 x 108(obverse side)

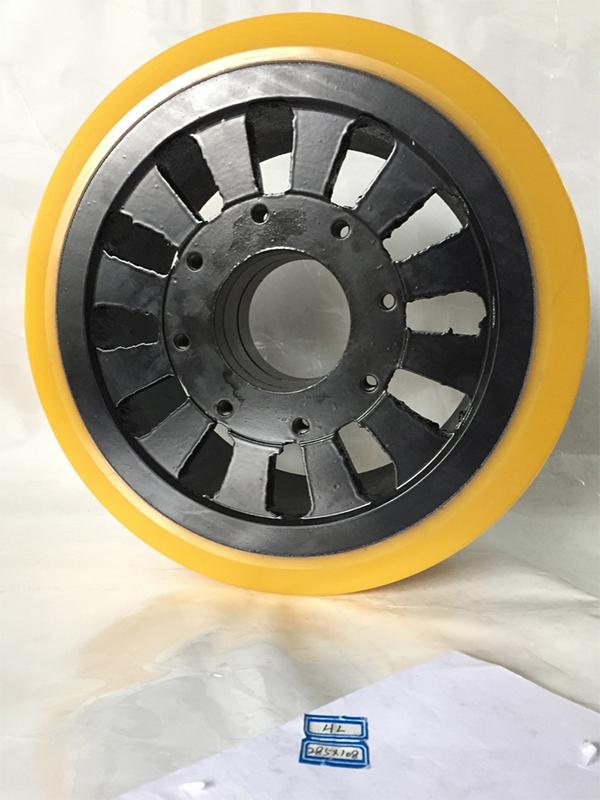

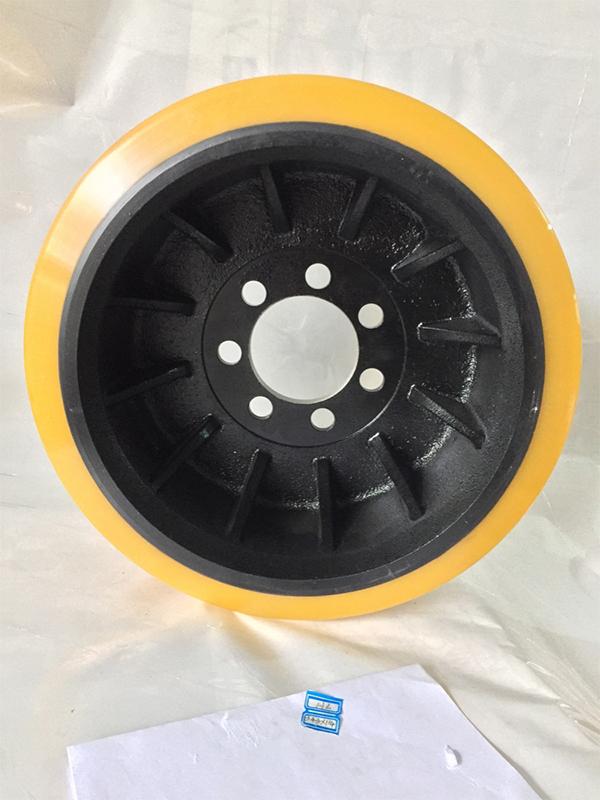

Dia.285 x 108(obverse side)

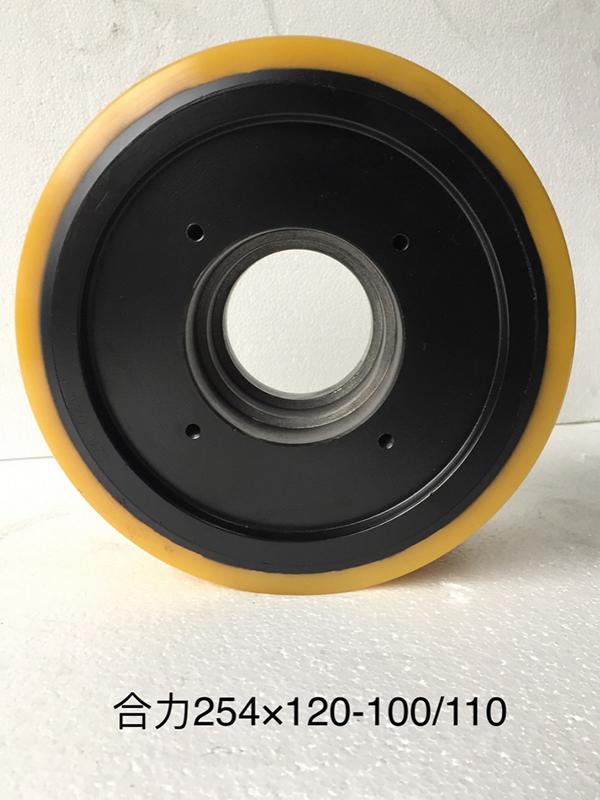

Dia.254 x 120(reverse side)

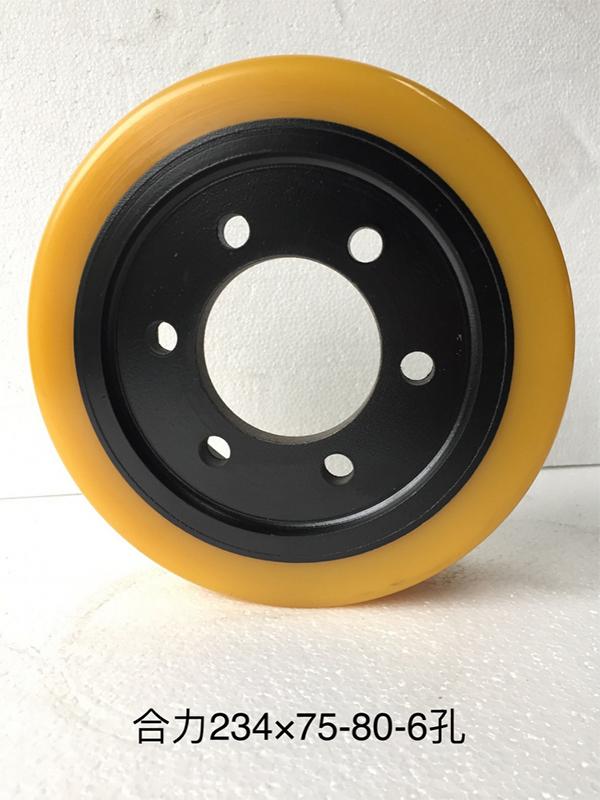

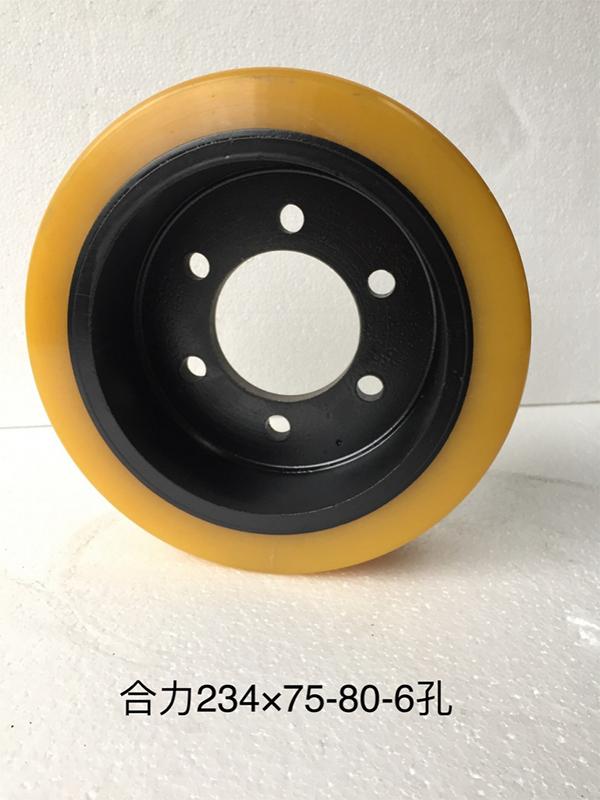

Dia. 234 x 75-80-6holes (reverse side)
Dia.234 x 75-80-6holes(obverse side)
Load bearing wheels
Dia.285 x 108(reverse side)
Dia.285 x 108(obverse side)

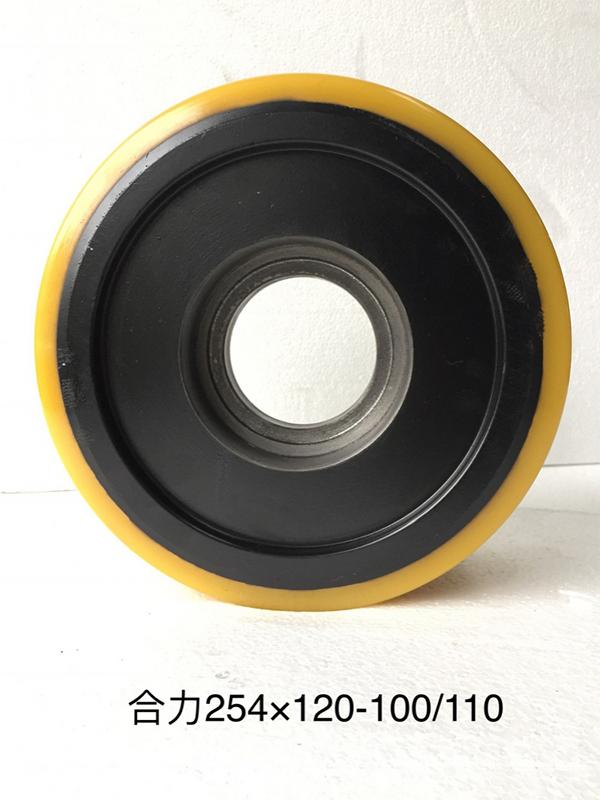

Dia.254 x 120(reverse side)
Dia.254 x 120(obverse side)

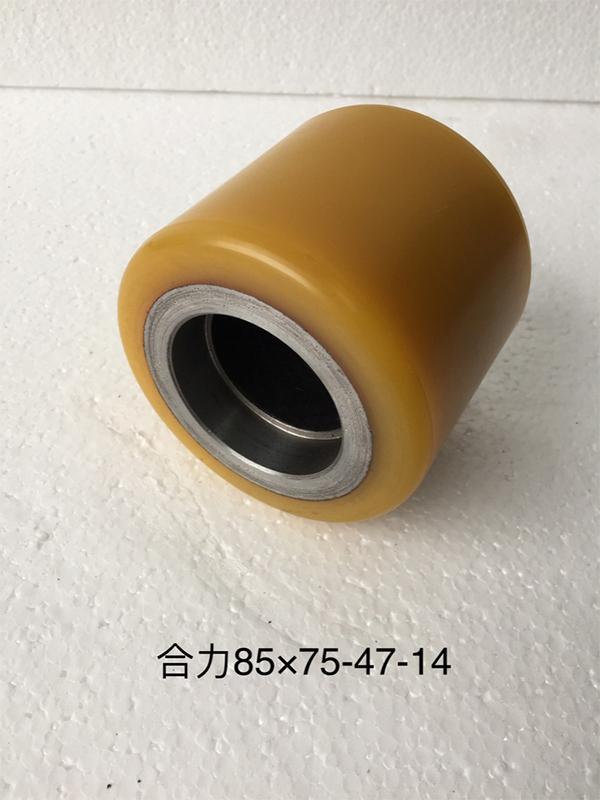

Dia.85 x 75-47-14
Auxiliary wheels

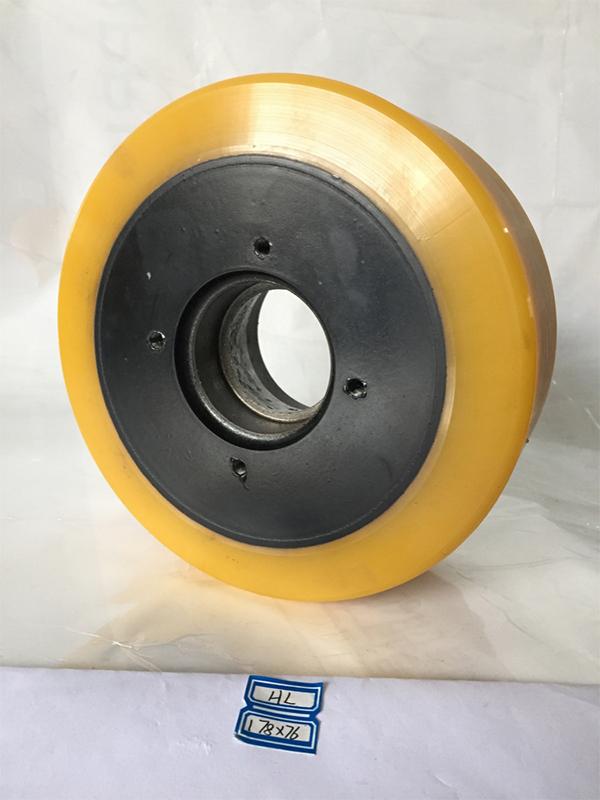

Dia.178 x 76

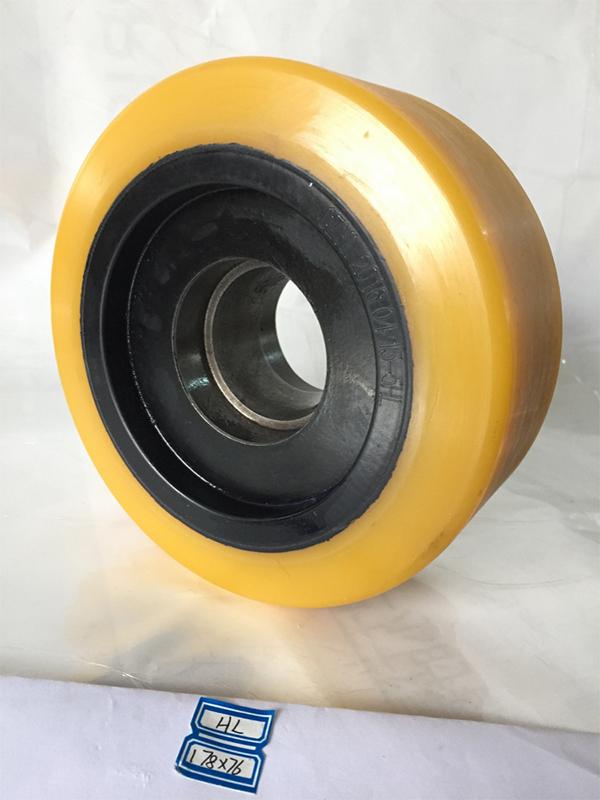

Dia.178 x 76(obverse side)
Size select:
Name of product
D (Diameter, mm)
H (Height, mm)
d1 (Hole diameter, mm)
d2 (Depth, mm)
Hole count
Driving wheel
343
114
80
7holes
Driving wheel
343
108
68
8holes
Driving wheel
330
114
80
7holes
Driving wheel
285
108
68
8holes
Auxiliary wheel
254
120
100/110
Auxiliary wheel
250
80
175
10holes
Auxiliary wheel
234
75
80
6holes
Auxiliary wheel
178
76
52/62
Load bearing wheel
85
75
47
14
Load bearing wheel
82
118
52
15.5
Load bearing wheel
82
165
52
15
Load bearing wheel
80
75
47
14.5
Load bearing wheel
80
70
47
14.5
The polyurethane wheel treads and cat iron wheel centers used in the industrial polyurethane tire wheel are manufactured here at Yulin, so that we can effectively control each production process and reduce procurement costs for our customers. We have a group of talented designers who have extensive experience in designing polyurethane solid wheels for different environments, all based on potential client needs.
Features
1. Each high quality PU wheel has a high resilience performance.
2. These wheels are known for their excellent wear resistance and small compression deformation.
3. When working in low temperatures (as low as -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.
4. Steel ring material:
- castings: QT450 x 10
- steel components: GB/T-20
5. Polyurethane wheels are 100% non-gumming.
Our raw materials are sourced from the German company Bayer, and the Japanese company Mitsubishi, and synthesize all polyurethane pre-polymer here in house. We are equipped with a strict assay laboratory, which allows us to ensure the matching accuracy in the production of each polyurethane wheel. In addition, all wheel centers for the electric forklift trucks are produced by us here at Yulin, so that we can guarantee that the polyurethane tread is effectively bonded to the metal wheel center, and will not be degummed through sand blasting, cleaning or drying.
Besides the HELI electric forklift truck wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for the brands like Linde, Jungheinrich, Hyster, Hyundai, MIMA, TCM, Daewoo, etc. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels for warehouse material handling equipment with custom-made service.
